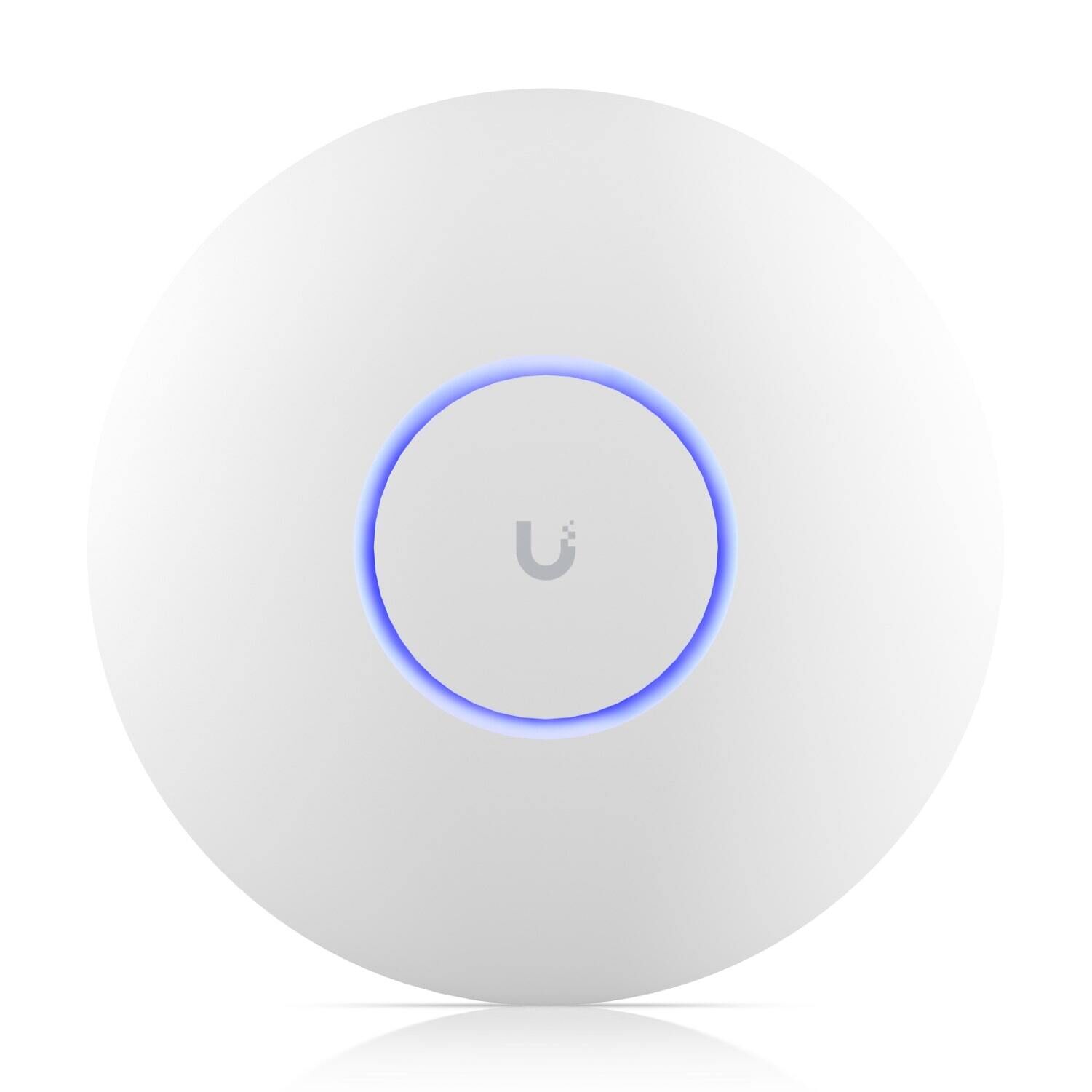

U7 Pro Max

Ceiling-mounted WiFi 7 AP with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments.

WiFi 7 with 6 GHz support

8 spatial streams

Real-time spectral analysis for enhanced channel selection*

160 m² (1,750 ft²) coverage

500+ connected devices

Powered using PoE+

2.5 GbE uplink

Multi-Link Operation (MLO) capability is coming soon and will be provided via software update.



The WiFi Industry Standard

The Ubiquiti U7 Pro Max, a Wi-Fi 7 access point, offers advanced features ideal for high-density environments like offices and conference venues. It delivers up to 14,988 Mbps across the 2.4 GHz, 5 GHz, and 6 GHz bands, which supports more than 500 devices simultaneously with low latency and consistent performance.



Exceptional Multi-Device Support for High-Traffic Environments

The Ubiquiti U7 Pro Max is designed to provide extensive wireless coverage, ideal for homes, offices, and even large open spaces. It offers a coverage area of up to 160 square metres, and can support over 500 connected devices, making it suitable for environments with a high number of users and devices.



Versatile Mounting Options

The Ubiquiti U7 Pro Max offers versatile and convenient mounting options, making it easy to install for both wall and ceiling configurations. The included wall and ceiling mounting kit simplifies installation and provides a secure, unobtrusive fit, blending into most settings while delivering seamless, high-speed Wi-Fi 7 coverage.



Enhanced Security and Simplified Installation

This AP includes WPA, WPA2, and WPA3 encryption standards, improving network security for various devices and applications. It also features a 2.5 GbE PoE+ port for power and data through a single cable, simplifying setup and reducing infrastructure complexity.



Technical Specs

Mechanical

Dimensions

Ø206 x 46 mm (Ø8.1 x 1.8")

Weight

680 g (1.5 lb)

Enclosure material

Polycarbonate, aluminium

Mount material

Stainless steel (SUS304), galvanised steel (SGCC)

Hardware

Networking interface

(1) 1/2.5 GbE RJ45 port

Management interface

Ethernet

Power method

PoE+

Power supply

UniFi PoE switch

Supported voltage range

44—57V DC

Max. power consumption

25W

Max. TX power - 2.4 GHz

23 dBm

Max. TX power - 5 GHz

29 dBm

Max. TX power - 6 GHz

23 dBm

MIMO - 2.4 GHz

2 x 2 (DL/UL MU-MIMO)

MIMO - 5 GHz

4 x 4 (DL/UL MU-MIMO)

MIMO - 6 GHz

2 x 2 (DL/UL MU-MIMO)

Max. data rate - 2.4 GHz

688 Mbps (BW40)

Max. data rate - 5 GHz

8.6 Gbps (BW240)

Max. data rate - 6 GHz

5.7 Gbps (BW320)

Antenna gain - 2.4 GHz

4 dBi

Antenna gain - 5 GHz

6 dBi

Antenna gain - 6 GHz

5.9 dBi

LEDs

White/blue

Button

Factory reset

Mounting

Wall, ceiling (Included)

Ambient operating temperature

-30 to 50° C (-22 to 122° F)

Ambient operating humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Software

WiFi standards

802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Wireless security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

BSSID

8 per radio

VLAN

802.1Q

Advanced QoS

Per-user rate limiting

Guest traffic isolation

Supported

Concurrent clients

500+

Supported Data Rates

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6/6E)

7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

802.11be (WiFi 7) - 5 GHz

7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)

802.11be (WiFi 7) - 6 GHz

7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Application Requirements

UniFi Network

Version 8.2.93 and later
