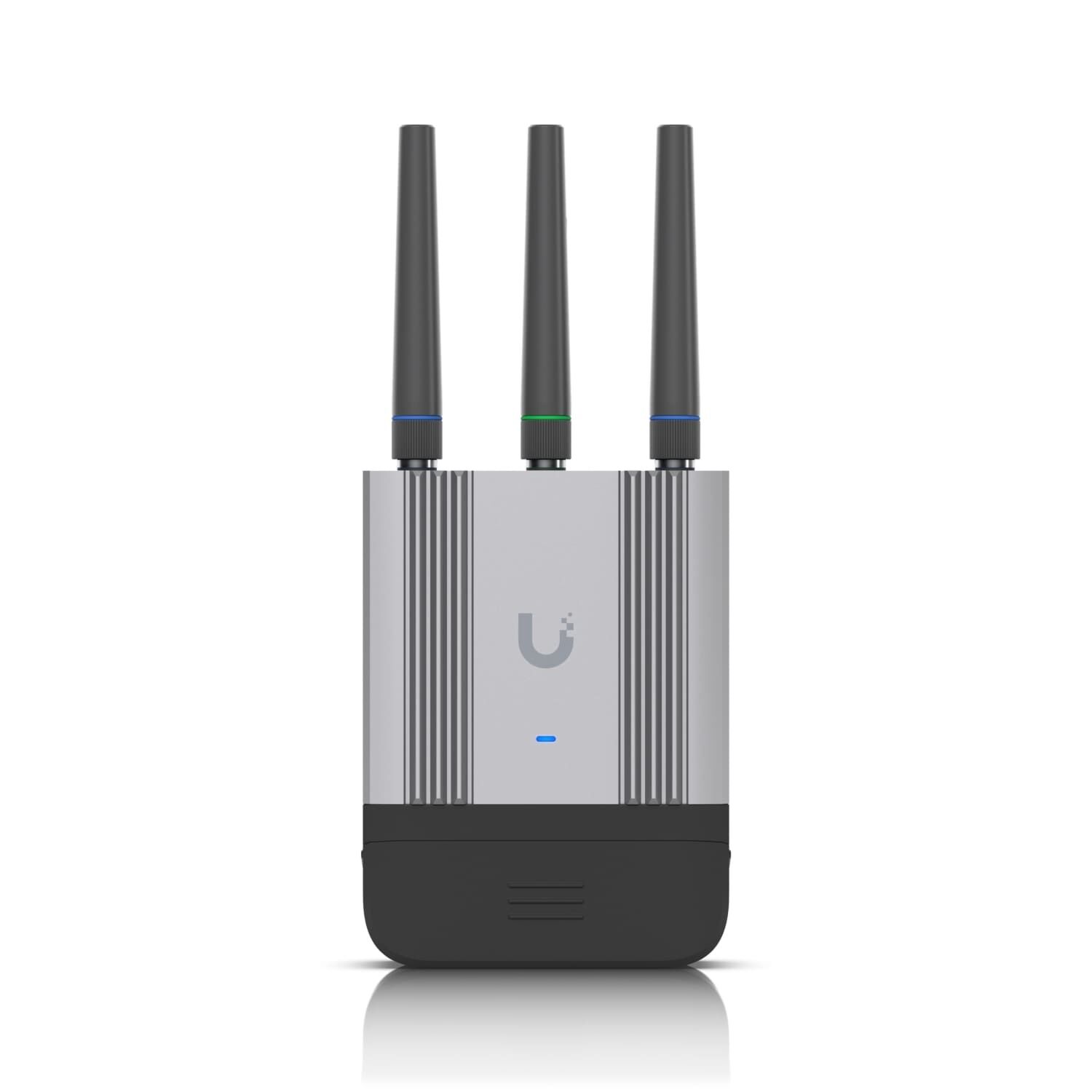

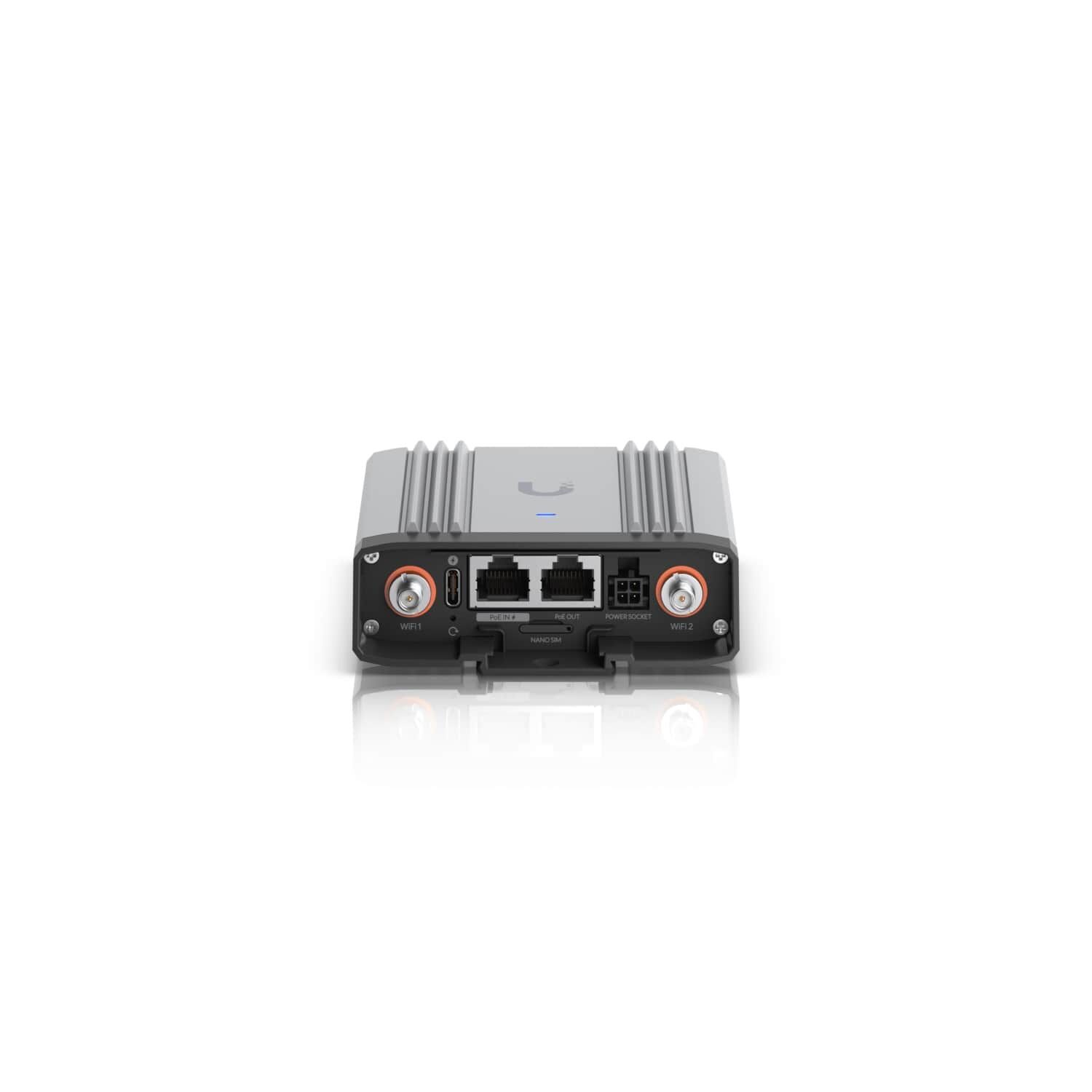

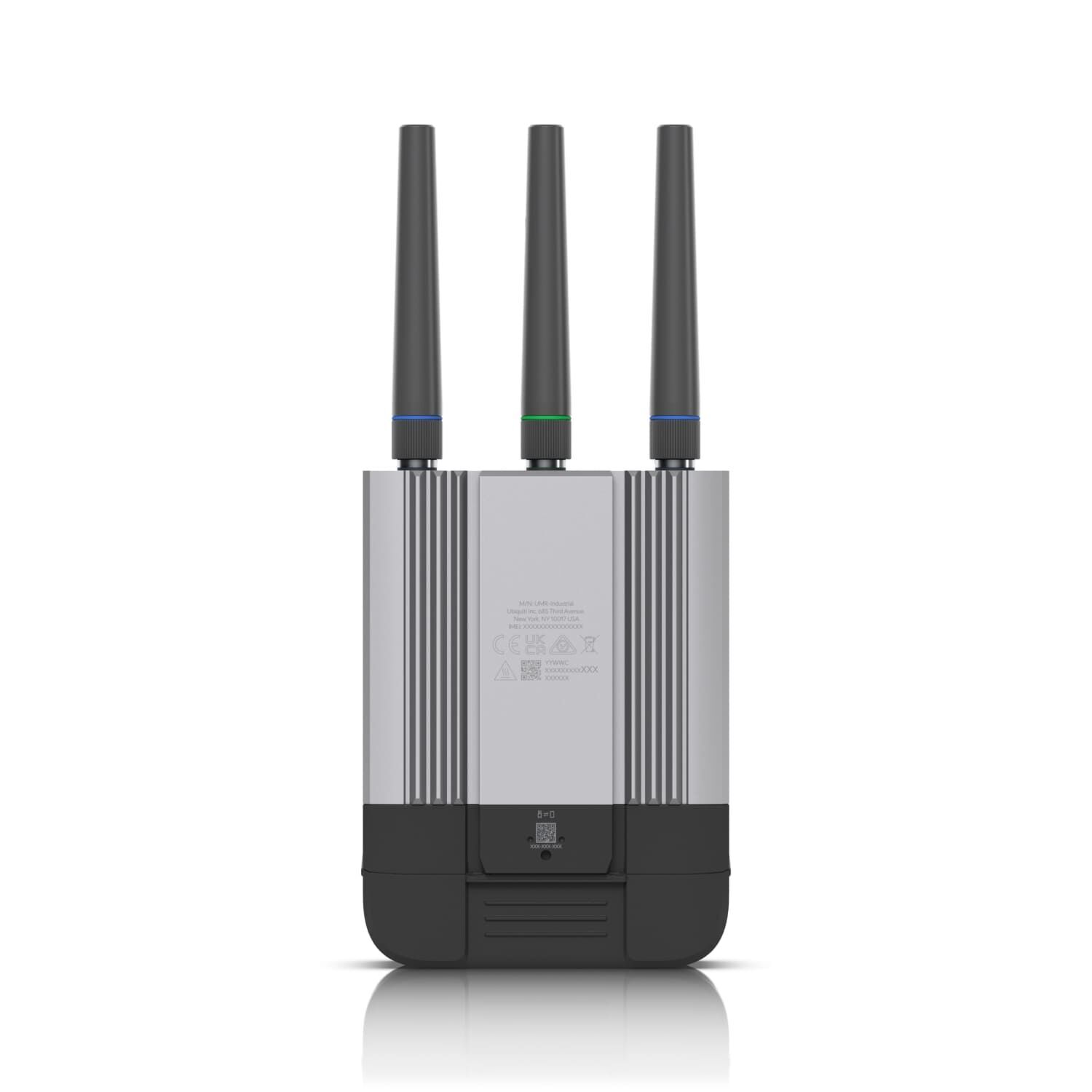

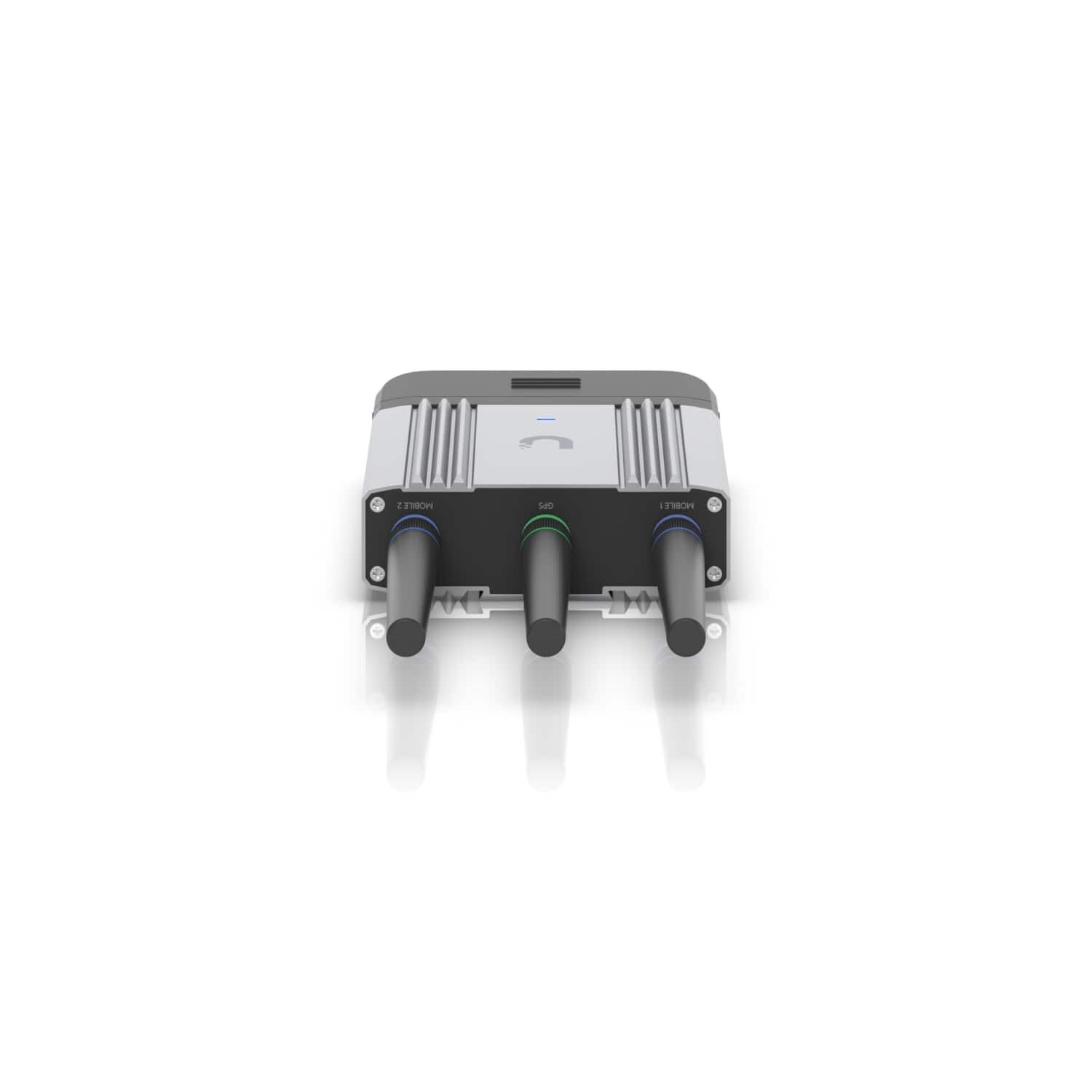

Mobile Router Industrial

Compact, ruggedised, and carrier unlocked LTE Cat 4 mobile WiFi router designed for indoor/outdoor IoT applications.

• Site-to-site VPN and VPN client routing
• (2) GbE ports with (1) PoE output*
• Powered using PoE, USB Type-C, or 4-pin DC power socket
• Outdoor GPS location tracking
• Flexible wall, pole, and DIN rail mounting
• Weatherproof (outdoor exposed) with the included cover
• Optional Mobility Cloud subscription**

*PoE+ input required for PoE passthrough.
**Offers secure remote access and full management via the UniFi Mobility Manager at mobility.ui.com for $2 per month or $19 per year per Mobile Router. 30-day free trial included. Core management is free and always available via local connection.



An All-in-One Connectivity Hub

Bring plug-and-play, reliable networking to any environment.



Reliable Mounting Solutions

Deploy the Mobile Router Industrial anywhere with its flexible mounting options, including wall, pole, and DIN rail mounts, making it suitable for industrial and commercial environments.



Technical Specs

Mechanical

Dimensions

Without antennas and outdoor cover: 114.5 x 93.6 x 32 mm (4.5 x 3.7 x 1.3")
With antennas: 213 x 93.6 x 32 mm (83 x 3.7 x 1.3")
With antennas and outdoor cover: 217 x 94 x 32 mm (8.5 x 3.7 x 1.3")

Weight

Device: 360 g (12.7 oz)
Device with outdoor cover: 395 g (13.9 oz)
DIN rail/wall mounts: 25 g (0.9 oz)

Enclosure material

Polycarbonate, aluminium

Mount material

Wall/pole mount: polycarbonate
DIN rail mount: polycarbonate

Pole mount diameter

1–2" on pipe outer diameter

Wind loading

38.8 N at 200 km/h (8.7 lbf at 125 mph)

Weatherproofing

Device with outdoor cover: IP66

Hardware

Management interface

Ethernet, WiFi

Networking interface

(2) GbE RJ45 ports
LTE Category 4 radio
WiFi 4

PoE interface

(1) PoE input
(1) PoE output* (Max. 10W)

*Requires a PoE+ switch.

Power supply

UniFi PoE switch (48—54V DC)
USB Type-C (5V DC)
4-pin* ATX DC power socket (9—30V DC)

*Pin 1 for Power + and Pin 2 for Ground. Please refer to the Installation Guide for detailed power socket pinout.

Max. power consumption

12.5W

SIM

nano-SIM (4FF)

LTE bands

B2, B4, B5, B12, B13, B14, B25, B26, B66, B71

LTE throughput speed

Download 150 Mbps / Upload 50 Mbps

*Speed depends on network coverage and performance at the device location.

WiFi standards

802.11 b/g/n, WiFi 2.4G, 20/40 MHz

Max. WiFi TX power

22 dBm

WiFi MIMO

2 x 2

GPS

Yes

Antenna SMA ports

(1) Mobile 1: SMA female connector, supports 1Tx and 1Rx
(1) Mobile 2: SMA female connector, supports 1Rx only
(1) GPS: SMA female connector
(2) WiFi: RP-SMA female connectors

Note: Ensure all SMA / RP-SMA connectors are secured with antennas or the provided caps to maintain weatherproofing.

External antennas

(2) Mobile/LTE antennas with SMA male connectors
(1) GPS antenna with SMA male connector
(2) WiFi antennas with RP-SMA male connectors

LED

Status: blue/white

Button

Factory reset

Mounting

DIN rail/wall/pole mount (Included)

Ambient operating temperature

-40 to 70° C (-40 to 158° F)

Ambient operating humidity

5 to 95% noncondensing

Certifications

FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance®

Supported WiFi Data Rates

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (WiFi 4)

6.5 Mbps to 300 Mbps (MCS0 - MCS7, HT 20/40)
