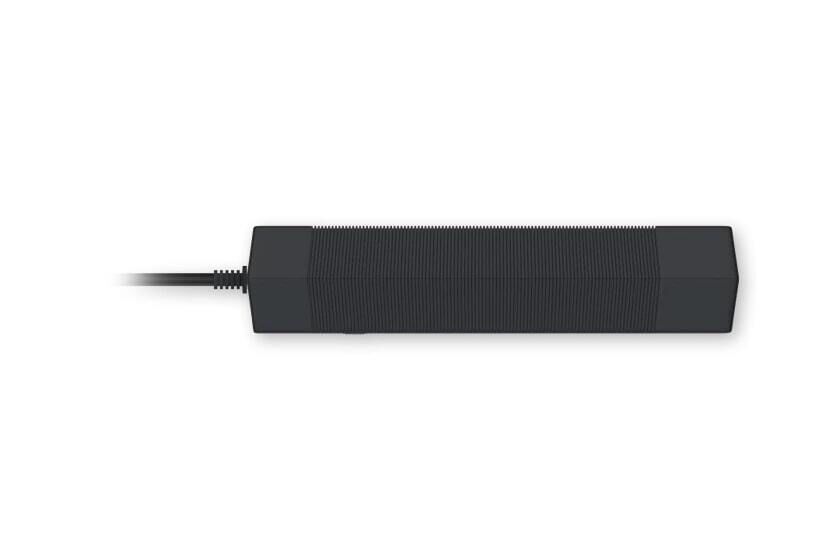

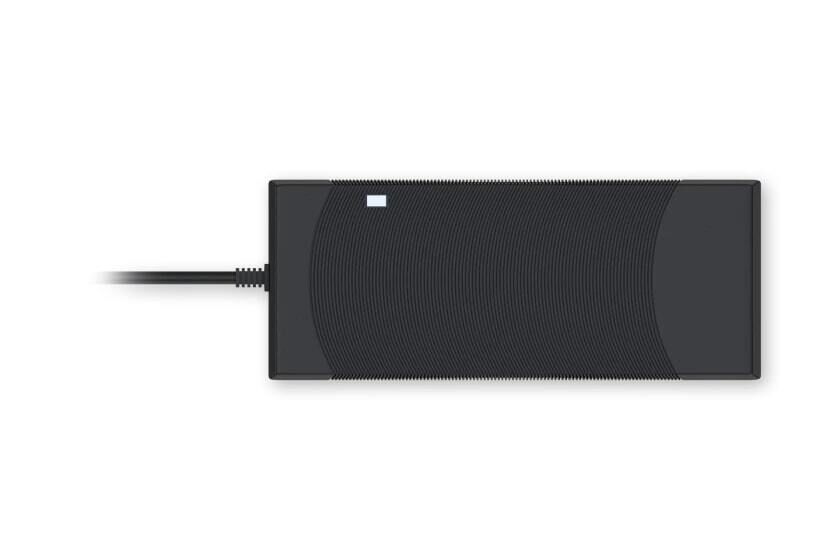

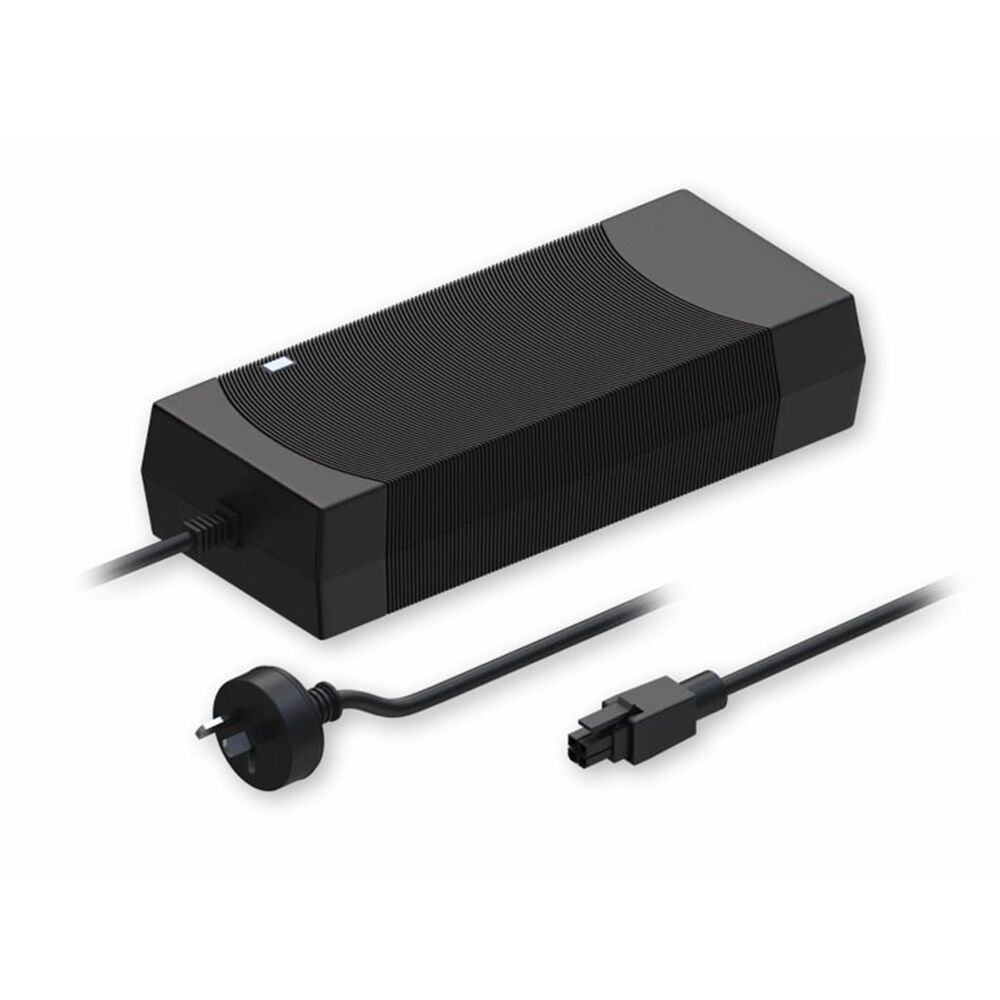

Teltonika AU POWER SUPPLY, 130W

SKU: Leader-NHT-PR313AU3

Teltonika AU POWER SUPPLY, 130W

SKU: Leader-NHT-PR313AU3

Quantity
-
+

Calculate shipping



Tracking Parcel Post - $9.95
5-7 Business days

Teltonika AU POWER SUPPLY, 130W

TECHNICAL DATA

GENERAL

  • Input voltage: 100 - 240 VAC
  • Input frequency: 50/60 Hz
  • Input current: 2.5 A
  • Input connector: AU (Type 1)
  • Output voltage: 50 VDC
  • Output current: 2.6 A
  • Output connector: 4pin, 3 mm pitch
  • Weight: 640g

ADDITIONAL

  • Input voltage absolute maximum rating: 90-264 VAC
  • Input frequency absolute maximum rating: 47-63 Hz
  • Maximum input inrush current: 50 A
  • Output voltage absolute maximum rating: 47.5 - 52.5 VDC
  • Short circuit protection: Yes
  • HIPOT (dielectric withstand test): Primary to Secondary - 4242 VDC
  • MTBF: 50000 h
  • PSU efficiency standard: DOE Level VI
