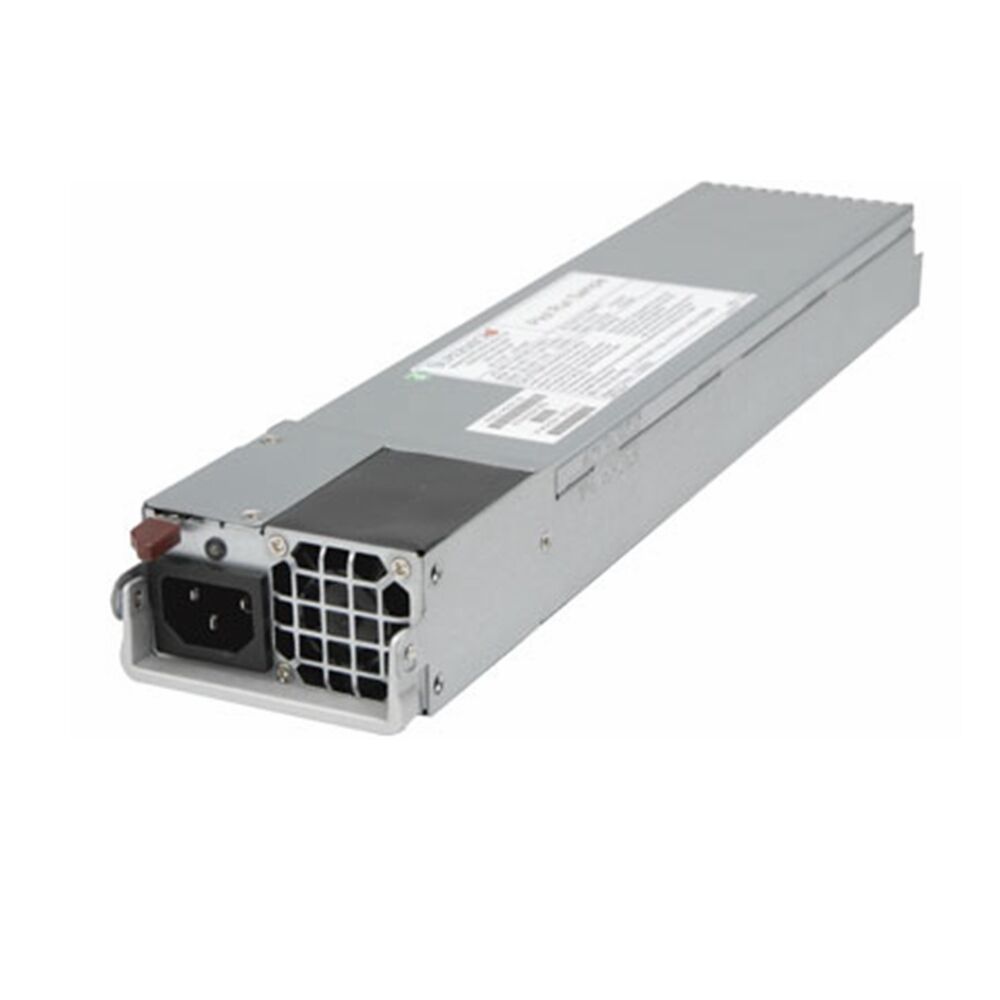

The Supermicro PWS-721P-1R is an 80 Plus Gold level redundant power supply capable of supplying 720W output power at 90% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 150,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU.

This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.

Features

• Designed for Supermicro 1U Server
• Redundant PSU with PMBus 1.1 Support for Remote Management
• 80 Plus Gold Efficiency
• Supermicro Certified

Specifications

• Brand Supermicro
• Total Power Output 720W
• Type Module
• Type of Power Supply Power Supply
• Form Factor 1U
• Dimension (W x H x L) 76 x 40 x 346 mm
• +5V N/A
• +12V 59A
• +3.3V N/A
• 5V Standby 4A
• Input Voltage Range 100-240V
• Input Frequency Range 50-60Hz
• Input Current Range 9-4A
• Output Type Gold Finger (19 Pair Connector)
• 8Pin / 4Pin (12V) Connector N/A
• PFC Yes
• Voltage / Current Yes
• Energy Efficiency 90% Peak
• 80 Plus Certification 80 Plus Gold
• Validated Chassis CSE-213A-R720LPB, CSE-213LTQ-R720LPB, CSE-213LTQ-R720UB, CSE-815TQ-720CB, CSE-815TQ-720UB
• Warranty 1 year warranty
