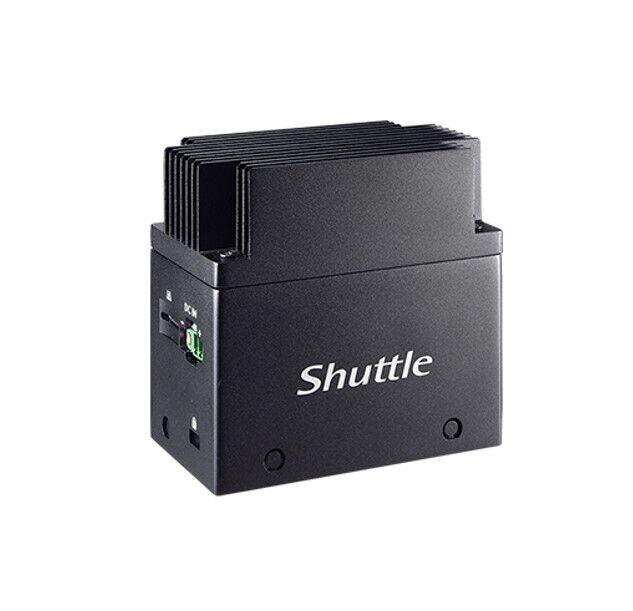

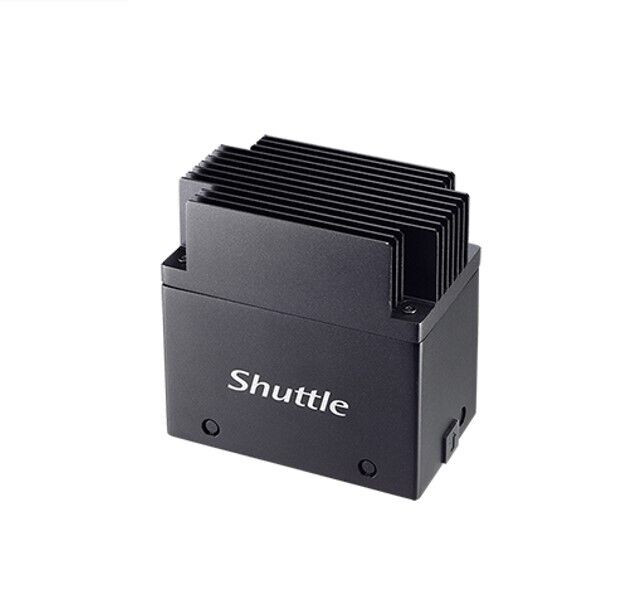

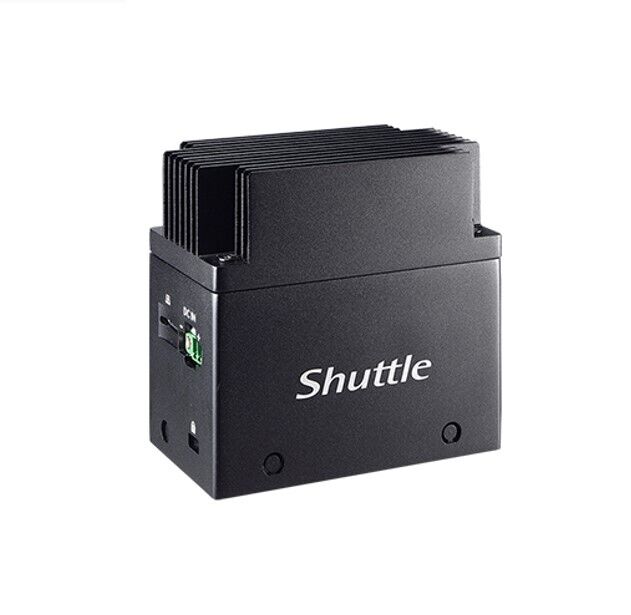

Shuttle EN01E Edge PC-Atom x5-E3940

Intelligent Platform for Data-Intensive Edge Applications - With tiny size of only 92 mm by 90 mm, the ENO1 is one of the smallest full-featured PCs on the market for intelligent edge applications. Based on a range of Intel's low-power Apollo Lake processor lineup, the ENO1 is not only miniature but capable, durable, and AloT-ready to serve as an intelligent platform for data-intensive applications. Areas of use include the industrial automation sector as well as the transportation and communications field.

Features:

Miniature Design

• The ENO1 measures only 92 x 54 x 90 mm. The hardware and housing of ENO1 are designed from the ground-up to minimize size and maximize capabilities, durability, and performance.

Full Processor Options

• Powered by choice of Intel® Apollo Lake AtomTM/ Pentium®/ Celeron® processors, the ENO1 gives the option to deliver the best application performance at optimized cost. *ENO1 barebone is also available for Nvidia Jetson TX2

Tiny Size, Full Features

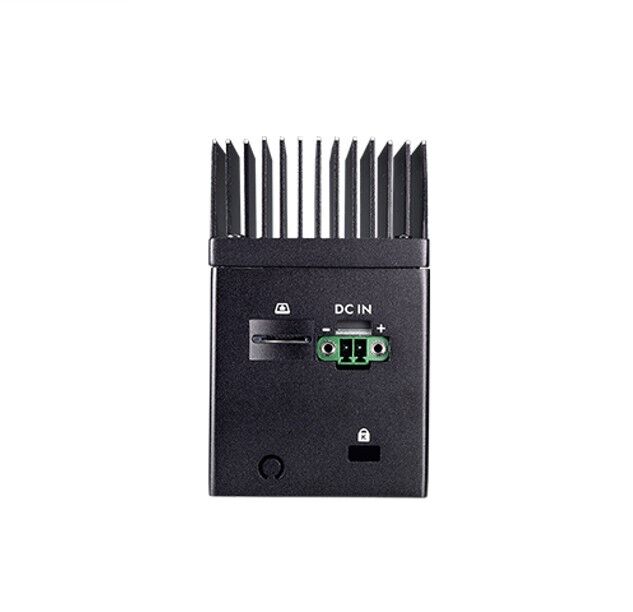

• Despite its small body, the ENO1 has rich IOs that allow seamless integration of applications, including 2x USB, 1x micro USB, HDMI, Giga LAN, and M.2 as well as Micro SD reader.

Versatile Networking

• Networking is essential for AloT. The ENO1 features one Gigabit LAN port and one M.2 socket for a 4G/LTE module working in conjunction. An optional antenna kit (PLA01) also helps perform well in outdoor environments.

Wide Temperature Range

• The ENO1 features a rugged design that allows a wide range of temperatures from -20 to 60°C, particularly suitable for industrial applications under harsh conditions. "When equipped with Atom processor

Mounting Ready

• The ENO1 includes both VESA and DIN rail mounting kit for flexible installation. It's small enough to be mounted in nearly any Alot scenario - in a cabinet, in a vehicle, inside a vending machine, or just mounted behind a display or on the wall.

Silent, Fanless Design

• With a passive thermal cooling design, the ENO1 allows operation not only quiet but also low in energy use and virtually maintenance-free.

POE Support

• The ENO1 supports optional Power over Ethernet function (PSE01/ PD01), which eliminates the need for a power adapter and effectively reduces the configuration cost.

Video Capture Support

• The ENO1 supports optional video capture function (MCAPO1), which provides real-time monitoring and capturing with resolution up to FHD 1080p, suitable for surveillance and security applications of UAV/drone systems.
