Shuttle DH32U XPC Slim, Intel Tiger lake-U Pentium 7505, 2xDDR4, 2.5' HDD/SSD Bay, 2x Intel i211, 1x RS232, HDMI, 90W, VESA Mount

SKU: Leader-SYS-DH32U

Shuttle DH32U XPC Slim, Intel Tiger lake-U Pentium 7505, 2xDDR4, 2.5' HDD/SSD Bay, 2x Intel i211, 1x RS232, HDMI, 90W, VESA Mount

SKU: Leader-SYS-DH32U

$1,003.39
RRP $1,110.00
SAVE $106.61
  • Sold Out
Quantity
-
+

Calculate shipping



Tracking Parcel Post - $9.95
5-7 Business days

More From This Category

Shuttle DH32U XPC Slim, Pentium7505, Intel® DG1 Graphics, 4 x HDMI 2.0b, 2 COM, 2 LAN

Form Factor

  • Shuttle 1.3L Chassis

Processor

  • Intel Tiger lake-U Pentium 7505 15W

Memory

  • 2 x 260 pin DDR4 SODIMM slots,32GB per DIMM (Max 64GB) Dual Channel DDR4 3200 Mhz

Video Output

  • HDMI 2.0b x 4 Quad Independence Video Output
  • 4K/2K playback (Dual Channel Memory Recommended)
  • Support EDID Emulation Function(DH32UE series only)

Audio

  • Realtek ALC662/897/888S
  • 2 Channel High Definition Audio

Ethernet

  • Intel i211x2 100Mb/s and 1Gb/s; Operation Supports Wake-On-LAN Function

Storage Interface

  • SATA 6.0Gb/s Interface

Onboard Connectors

  • 1x SATA power connector
  • 2x 4 pin fan connectors
  • 1x Auto power on header
  • 1x VGA
  • 1x RS232
  • 1x RS232/422/485
  • 1x External 4 pin header (Power/Clear/CMOS/5V/GND

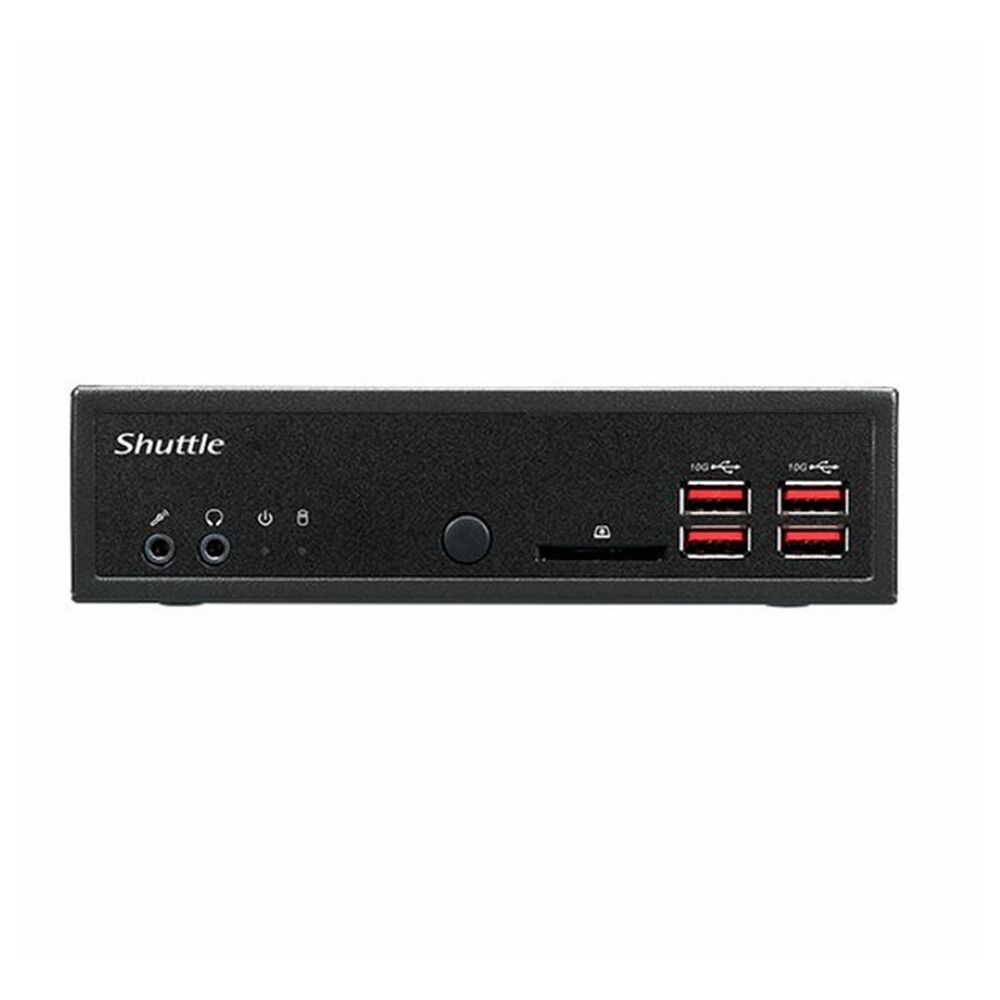

Front Panel

  • 4x USB 3.2 Gen2 ports
  • 1x Microphone-In
  • 1x Earphone-Out
  • 1x Power-On button
  • 1x Power LED
  • 1x HDD LED
  • 1x SD Card reader

Back Panel

  • 2x RJ45 Gigabit LAN port
  • 4x HDMI port
  • 4x USB 3.2 Gen1 ports
  • 1x RS232
  • 1x RS232/422/485
  • 1x External power on/Clear CMOS header
  • 1x Kensington lock
  • 2x Wireless Antenna fixture
  • 1x DC in

Drive Bays

  • 1x 2.5" HDD / SSD bay

Dimensions

  • 190(L) x 165(W) x 43(H) mm

Power

  • 90W Power Adapter
  • Input:100- 240V AC
  • Output: 19V 4.7A DC

Accessories

  • XPC DVD Driver
  • VESA mount

Expansiuon Slot

  • 1x M.2 2280 Type M Key Socket
  • 1x M.2 2230 Type E Key Socket

OS Support

  • Windows 10 64 bit O.S
  • Linux

Graphics

  • Intel Xe DG1 GPU
