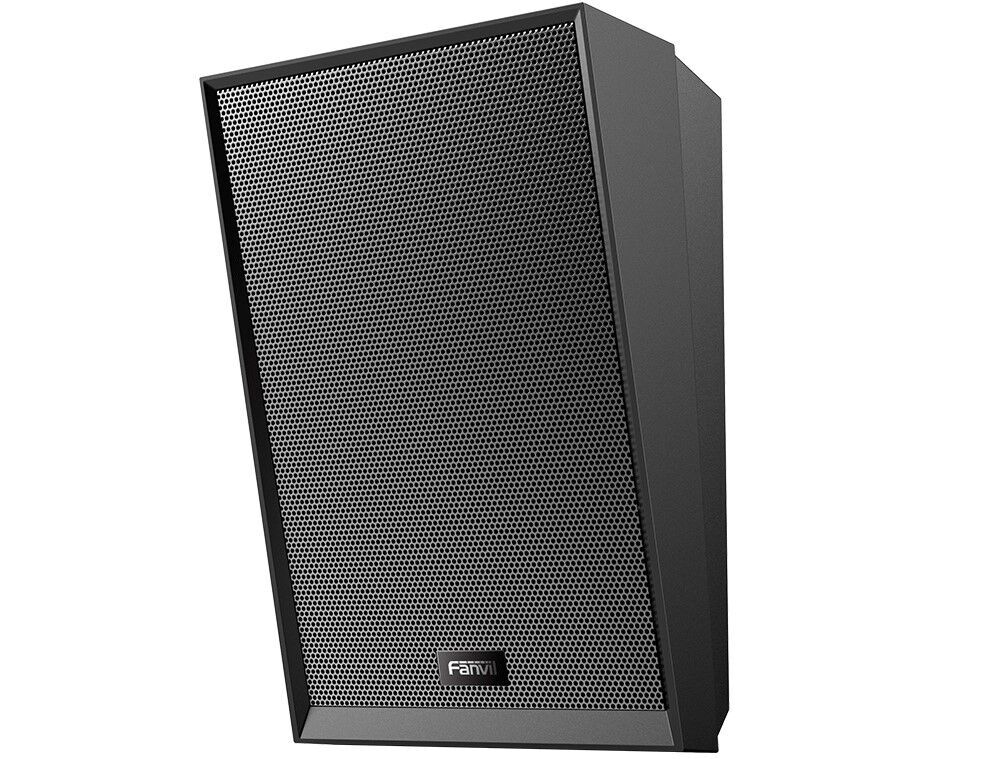

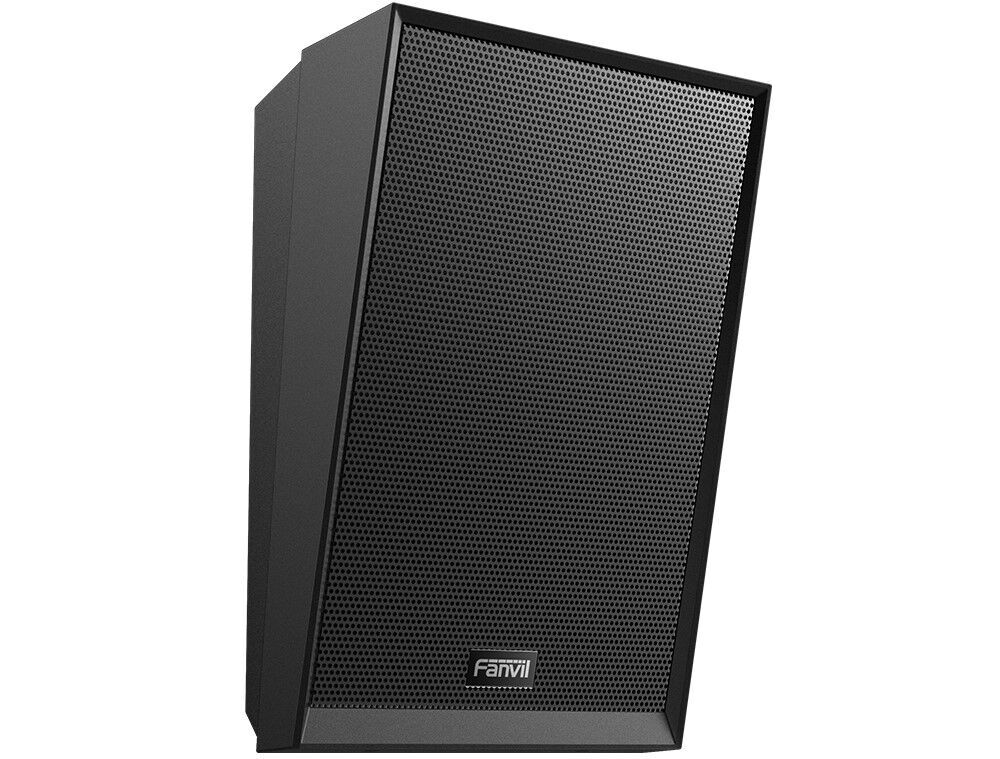

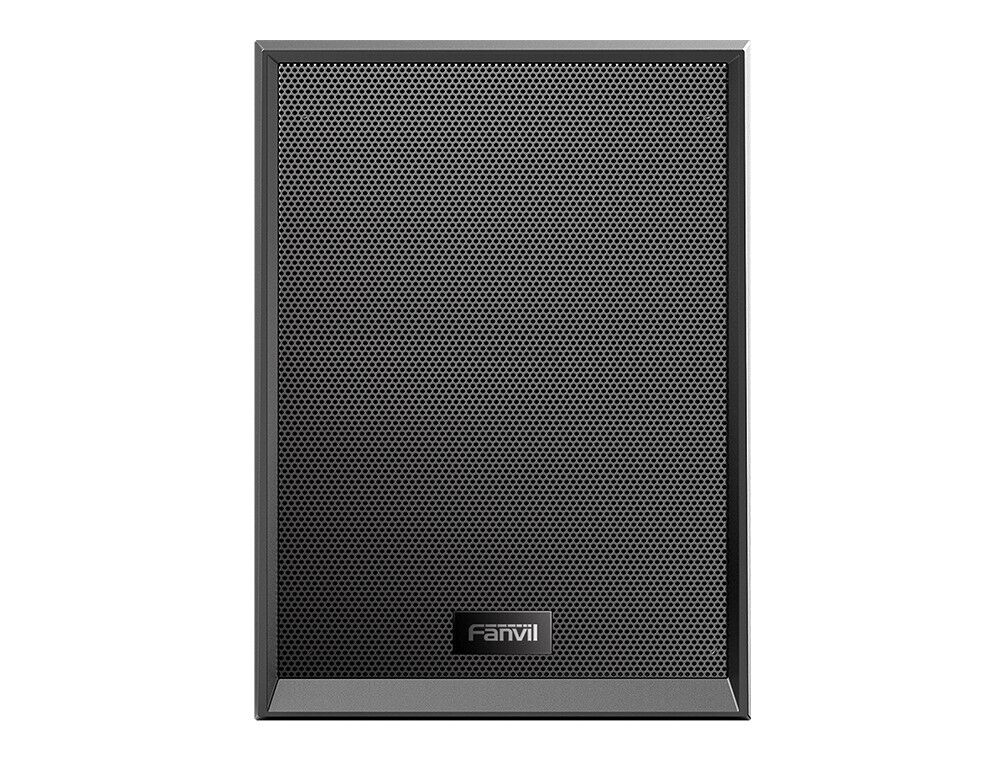

The A212 B Wall-mounted Speaker (Black) is a high-quality, commercial-grade IP audio terminal. It can operate independently as an audio system or integrate seamlessly with external systems like unified communication, video surveillance, Fanvil broadcast and intercom systems, access control systems, digital billboards, and fire alarm systems. This versatility allows for unified configuration and efficient operation, making it an ideal solution for various business and security applications.


CONDITION

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

WARRANTY

This item comes with a 12-month manufacturer's warranty.

FEATURES

• Excellent Sound Quality: Supports HD intercom and lossless music broadcast for clear and high-quality audio.
• Flexible Integration: Compatible with standard SIP protocol, HTTP API, short circuit input/output, and video linkage, allowing easy integration with third-party systems.
• Convenient Management: Managed through Web, DM software, FDMCS, and the Fanvil broadcast & intercom app, offering versatile control options.
• Functional Integration: Supports multiple functions such as paging broadcasting, scheduled broadcasting, emergency broadcasting, two-way intercom, self-check/monitoring, and priority management.
• Multi-Mode Operation: Offers various operational modes including serverless mode, converged communication mode, Fanvil broadcast & intercom system mode, and external linkage mode for different use cases.

QUICK SPECIFICATIONS

Basic Functions:
• SIP Lines: 2 SIP lines
• Installation: Wall-mounted installation, rotary support installation (optional)
• Main Speaker: 80 15W, can be connected to external 80 15W passive sub-speaker
• Microphone: Built-in microphone, support monitoring, self-test, intercom application
• HD Voice: Support, using G.722 and Opus encoding
• Lossless Sound Quality Broadcasting: Support MP3 and Wav encoding
• Multicast Partitions: 20 multicast partitions
• Audio File Storage: Built-in 24MB, support scheduled task broadcast
• Emergency Notification and Alarm: Customize audio files
• Short Circuit Detection: 3 short circuit input detection, 1 short-circuit output, linkage security alarm device
• External IP Camera: Support video linkage
• Remote Adjustment: Support Web remote volume adjustment
• Power Supply: Support PoE/PoE+ power supply or DC24V/2A power supply
• Network Port: Adaptive 10/100 Mbps network port

Device Functions:
• Default Auto Answer: Support (Auto-answering)
• Network Time Synchronization: Support
• Remote Volume Adjustment: Support
• Dynamic Multicast Function: Support
• Action URL / Active URI: Support

Audio:
• Audio Codecs: G.711A/U, G.729A/B, ILBC, G.723, G.726-32K, G.722, Opus
• DTMF: In-band, out-of-band (RFC2833/SIP INFO)

Speaker:
• Coaxial Treble: 5"
• Frequency Response: 100-20KHz
• Sensitivity: 88dB±3dB 1M/1W
• Impedance: 80
• MAX SPL: 105dB

Speaker Power:
• PoE: Main speaker 8W
• PoE+: Main speaker 15W
• DC 24/2A: Main speaker 15W (support external 82 15W sub-speaker)
• Mic:
• Type: Omnidirectional microphone
• Sensitivity: -38±3dB, impedance 2.2k ohm, bias voltage 2V

Network:
• Speed: 10/100 Mbps
• Network Mode: IPv4/IPv6/IPv4&IPv6
• IP Setting: Static IP/DHCP/PPPOE
• VPN: L2TP/OpenVPN
• VLAN: Support
• LLDP: Support
• QoS: Support

Deployment & Management:
• Auto-Provisioning: Via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PnP/TR-069
• Web Management Portal: Support
• Web-Based Packet Dump: Support
• Configuration Export/Import: Support
• Firmware Upgrade: Support
• Syslog: Support

Physical Specifications:
• Power Port: DC 24V/2A port×1
• RJ45 Port: 1, connect the Internet or LAN
• PoE Power Supply: Support (IEEE 802.3at, class 4)
• SPK Port: 1, support external 82 15W sub speakers
• Short Circuit Input Port: X 3
• Short Circuit Output Port: X 1
• Max Support: Terminal socket 30V/2A
• LED: Blue, green, cyan, can be customized
• DC Power Input: DC 24V/2A
• Working Temperature: -20°C55°C
• Storage Temperature: -30°C60°C
• Working Humidity: 10~95%
• Installation: Wall-mounted installation, universal bracket installation (optional)

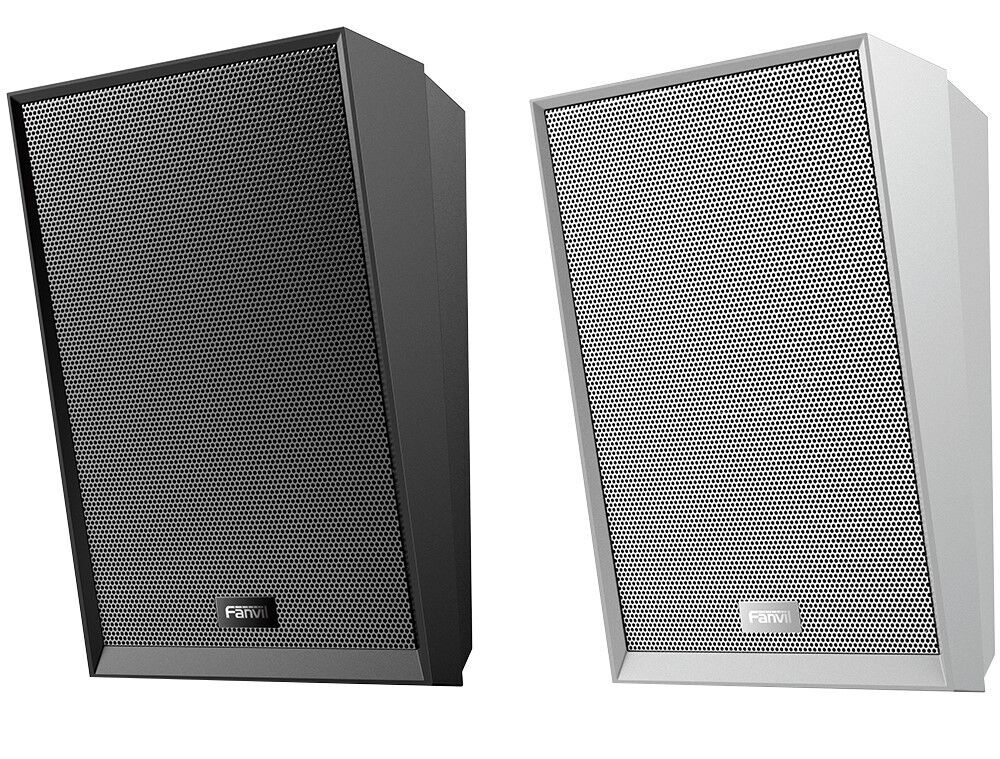

• Color: Black/White
• Device Overall Dimensions: 184.85mm×275.38mm×124.56mm

WHAT'S INCLUDED

• Fanvil A212 B Wall-mounted Speaker in Black
• User Guide
