DeepCool CH170 DIGITAL WHT ITX Case, Digital Status Display, Extremely portable size, Abundant Airflow Ventilation, Mesh panels, Full sized air cooler

SKU: Leader-CAD-CH170-DIG-WH

DeepCool CH170 DIGITAL WHT ITX Case, Digital Status Display, Extremely portable size, Abundant Airflow Ventilation, Mesh panels, Full sized air cooler

SKU: Leader-CAD-CH170-DIG-WH

Quantity
-
+

Calculate shipping



Tracking Parcel Post - $9.95
5-7 Business days

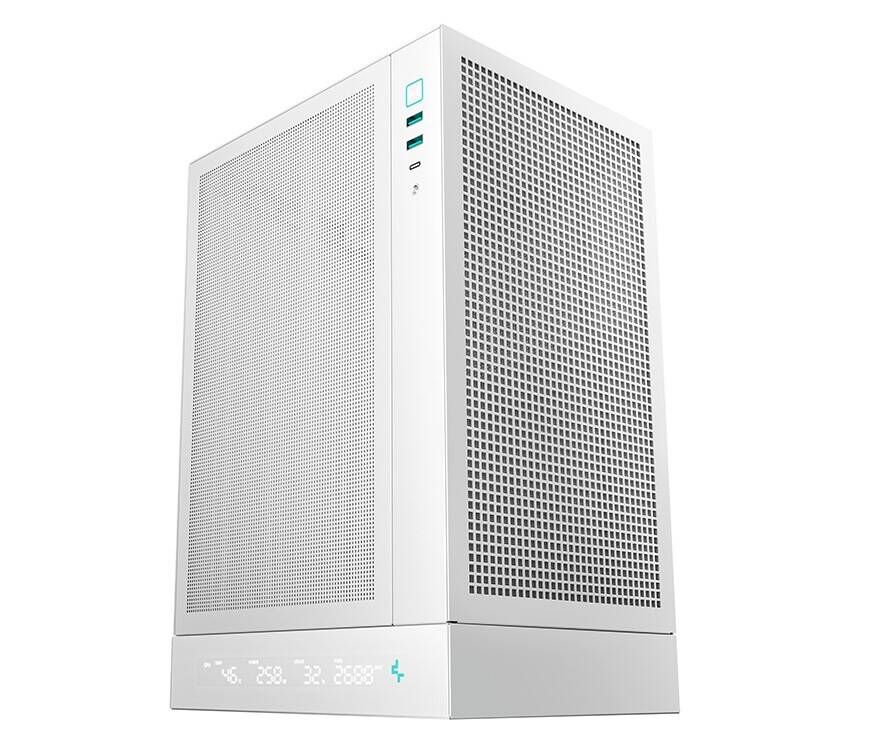

The CH170 DIGITAL WH is a vertical ITX case that has all the hallmarks of a high-airflow DeepCool case but in a tiny footprint. The internal layout provides a lot of flexibility for coolers and PSU options.

Technical Spec:

  • Product Dimensions: 380x200x250mm(L×W×H)
  • Net Weight: 3.5Kg Materials ABS+SPCC
  • Motherboard Support: Mini-ITX
  • Front I/O Ports: USB3.0×2、Audio×1、Gen2 TypeC×1
  • 3.5' Drive Bays: 1(2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three)
  • 2.5' Drive Bays: 1(2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three)
  • Expansion Slots: 3 Slots
  • Pre-Installed Fans: None

Fan Support:

  • Top:1×120 mm
  • Front: NA
  • Rear: 2×120 mm
  • Bottom:1×120 mm
  • Side : 2×120 mm

Radiator Support:

  • Side : 240mm

CPU Cooler Height Limit: 172mm

GPU Size Limit Length: SFX/SFX-L: 305mm / ATX: 230mm

Height: 138mm

Width: 65mm (3 Slots)

Power Supply Type: ATX PS2(maximum length: 140mm)/ SFX / SFX-L
