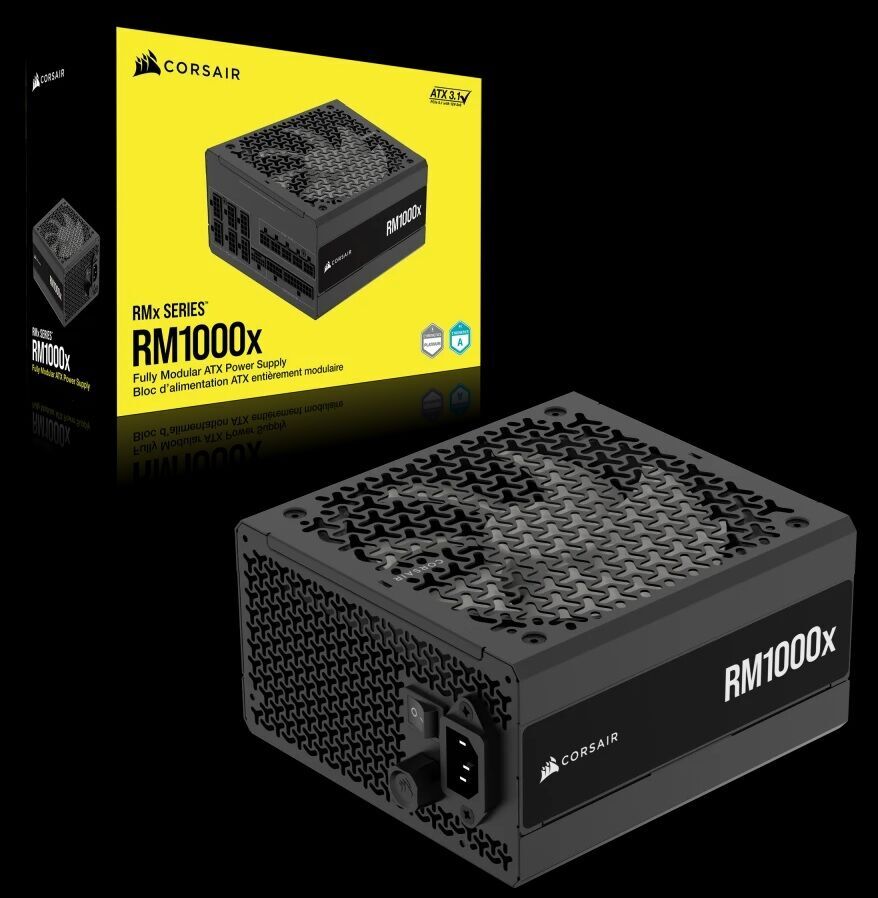

CORSAIR RMx Series RM1000x Cybenetics Gold ATX3.1 PCIe5.1 Fully Modular Power Supply



QUIET, DEPENDABLE, EFFICIENT

Our best-selling PSU, updated. This fully modular, low noise, Cybenetics Gold-certified power supply is ATX 3.1 compliant and ideal for delivering dependable power to today's top-performing PCs.


50°C CONTINUOUS OPERATING TEMPERATURE

Ensures reliable power for your PC, even under high-stress conditions.


105°C-RATED CAPACITORS

Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.


ATX 3.1 CERTIFIED

Be confident your PSU supports the latest sleep and hibernate modes and modern CPU and GPU requirements. ATX 3.1 compliance ensures full compatibility with modern components and power states.


CLEAN CABLING, EVERY TIME

FULLY MODULAR CONNECTORS

Connect only what you need using sleek embossed cables with low-profile combs to make installations a breeze.

Native 12V-2x6 GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.


THE STRONG, SILENT TYPE

140mm LOW-NOISE FAN

A fluid dynamic bearing fan with magnetic dome structure keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.


ENGAGE MANUAL CONTROLS

MANUAL FAN OVERRIDE KNOB

Want to get more air through the PSU or to exhaust some heat from your case? You can override the Zero RPM Mode and low-noise profile of the RMx Series with our manual fan override knob, increasing fan speed and airflow.


RM1000x POWER TABLE

MODEL	RPS0198
Part No.	75-005877
AC Input Rating
AC Input	100 – 240V
Input Current	12A - 5A
Frequency	47~63Hz
	Max Load	Max Output
+3.3V	20A	150W
+5V	20A
+12V	83.3A	1000W
+5Vsb	3A	15W
Total Power	1000W



Specifications

Cybenetics Efficiency

Gold

Cybenetics Noise

A

ATX Connector

1

ATX12V Version

3.1

Cable Type

Type 4

Continuous Power W

1000 Watts

EPS Connector

2

MTBF Hours

100,000 hours

SATA Connector

12

PATA Connector

6

Modern Standby

Yes

Dimensions

160 x 150 x 86

Modular

Fully

PCIe Connector

4

Zero RPM Mode

Yes

Weight

3.65

Package Contents

• RM1000x Power Supply
• DC Cable Kit
• Power Cord
• Mounting Screws
• Cable Ties
