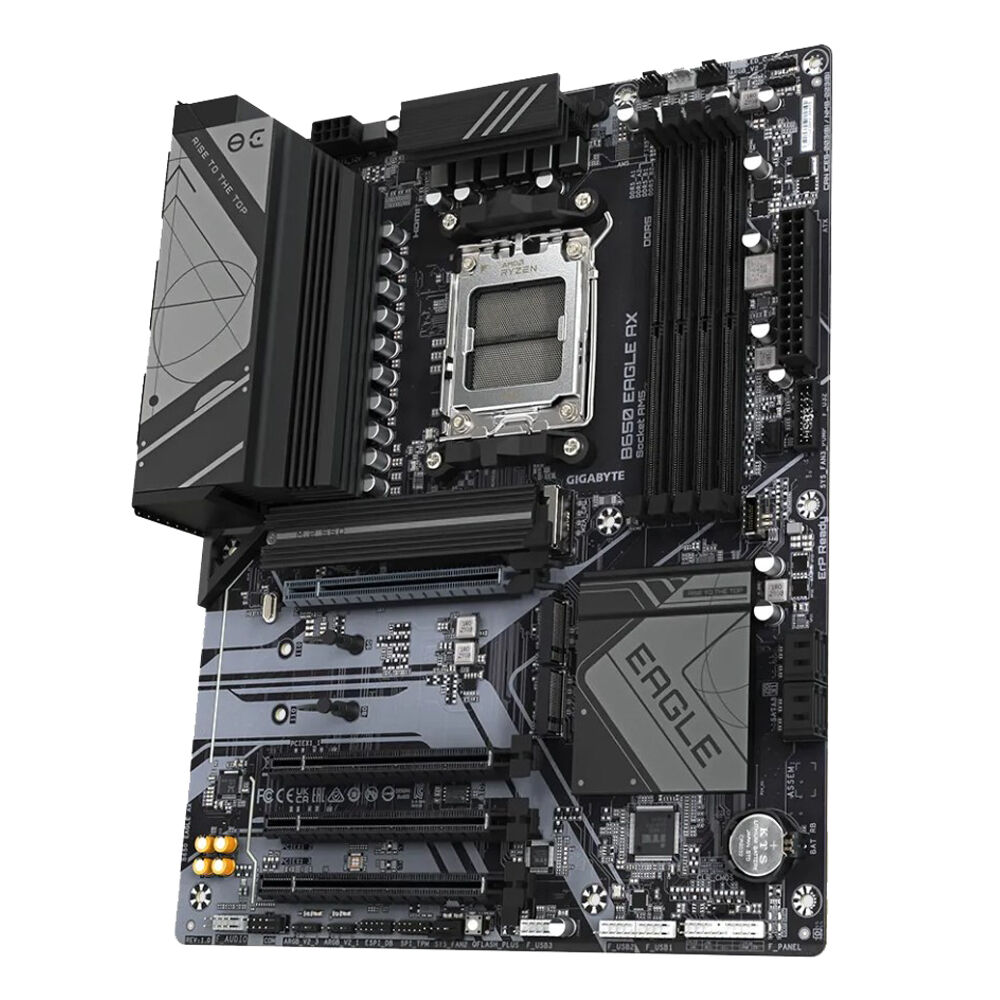

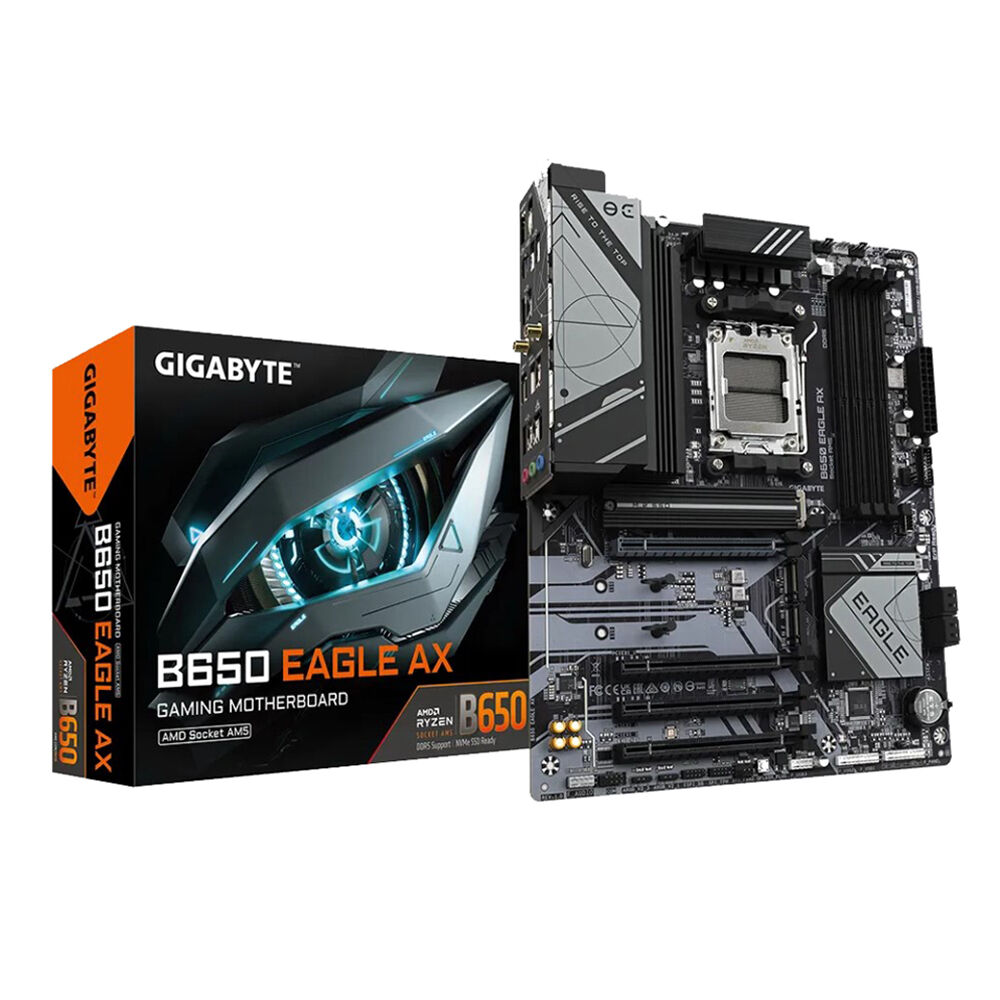

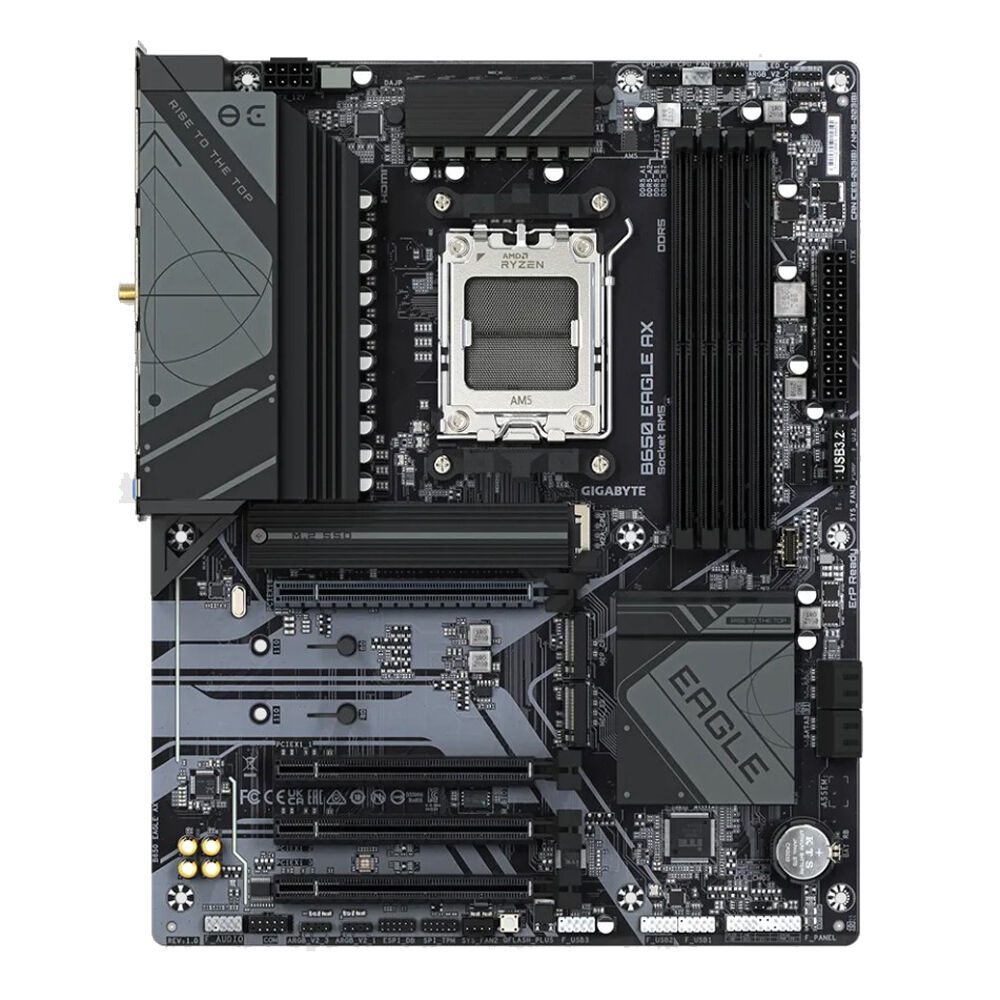

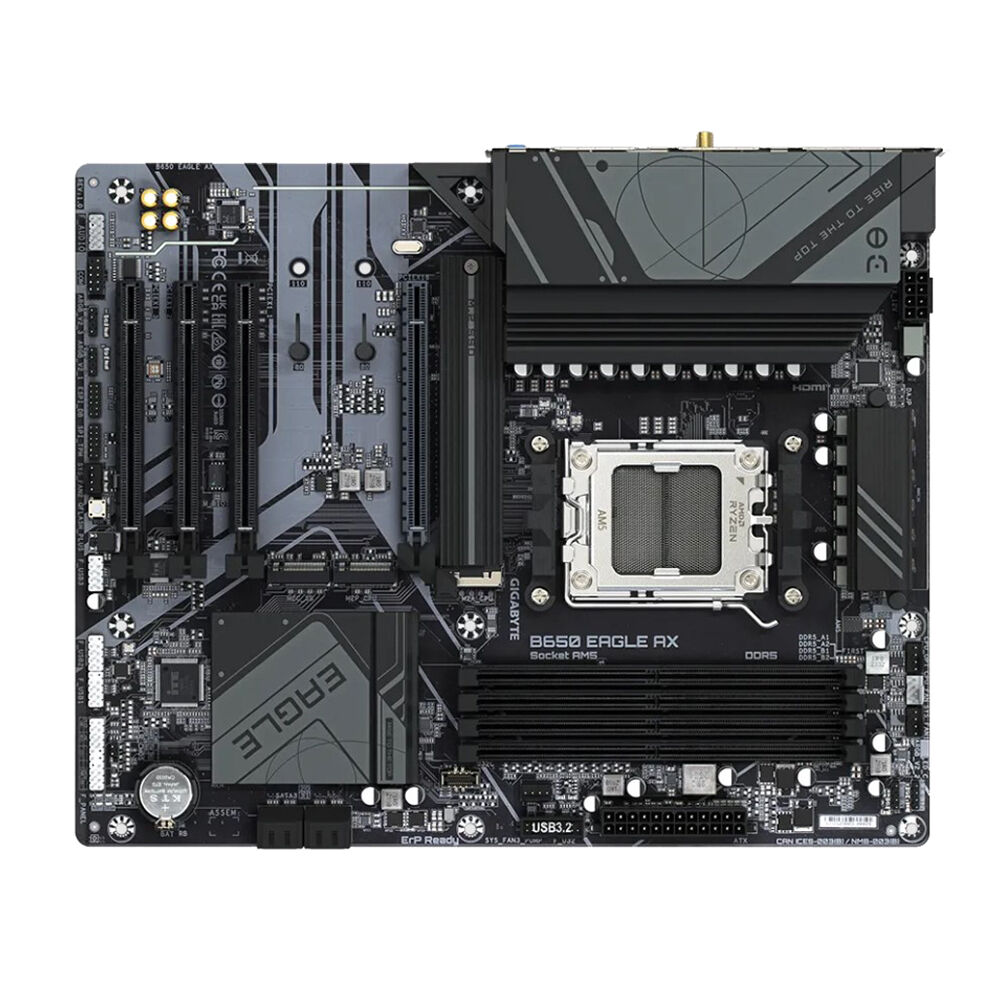

Gigabyte B650 EAGLE AX Motherboard

PRODUCT SPECIFICATIONS:

• Chipset: AMD B650

• CPU: AMD Socket AM5, support for - AMD Ryzen 7000 Series Processors / AMD Ryzen 8000 Series Processors
  (Go to GIGABYTE's website for the latest CPU support list.)

• Memory:
  - Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
  - 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
  - Dual channel memory architecture
  - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  - Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

• Onboard Graphics: Integrated Graphics Processor with AMD Radeon™ Graphics support:
  - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
  - Support for DisplayPort 1.4 version
  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  - Support for HDMI 2.1 version and HDCP 2.3
  - Support for native HDMI 2.1 TMDS compatible ports
  (Graphics specifications may vary depending on CPU support.)

• Expansion Slots: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
  - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
  - 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1
  - 1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1


NOTE: B650 EAGLE AX Special order for Gigabyte SI customers only
