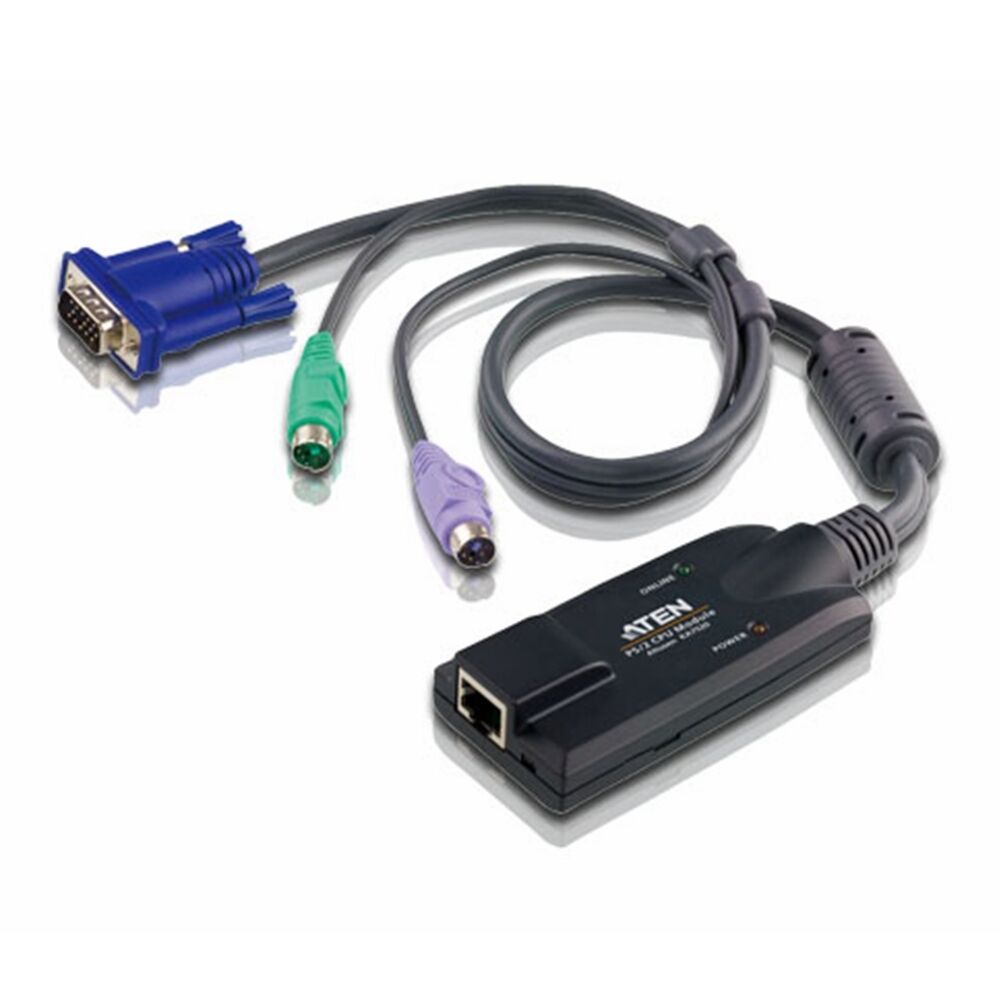

The KA7520 PS/2 KVM Adapter Cable connects the KVM switch to the video, PS/2 mouse and PS/2 keyboard ports of the target computer. With its small form factor and light weight design, it fits perfectly into most of the rack-mount or desktop servers.

Keyboard and mouse emulation - keeps your server functioning smoothly when it is disconnected from the switch's KVM port or relocated to different KVM port
Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)*
Hot pluggable - add or remove computers without having to power down the switch.

Connectors

• Link 1 x RJ-45 Female
• Computer 2 x PS/2 Male
• 1 x HDB-15 Male

LEDs

• Online 1 (Green)
• Power 1 (Orange)

Physical Properties

• Housing Plastic
• Weight 0.14 kg ( 0.31 lb )
• Dimensions (L x W x H) 9.00 x 4.30 x 2.18 cm (3.54 x 1.69 x 0.86 in.)

Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
