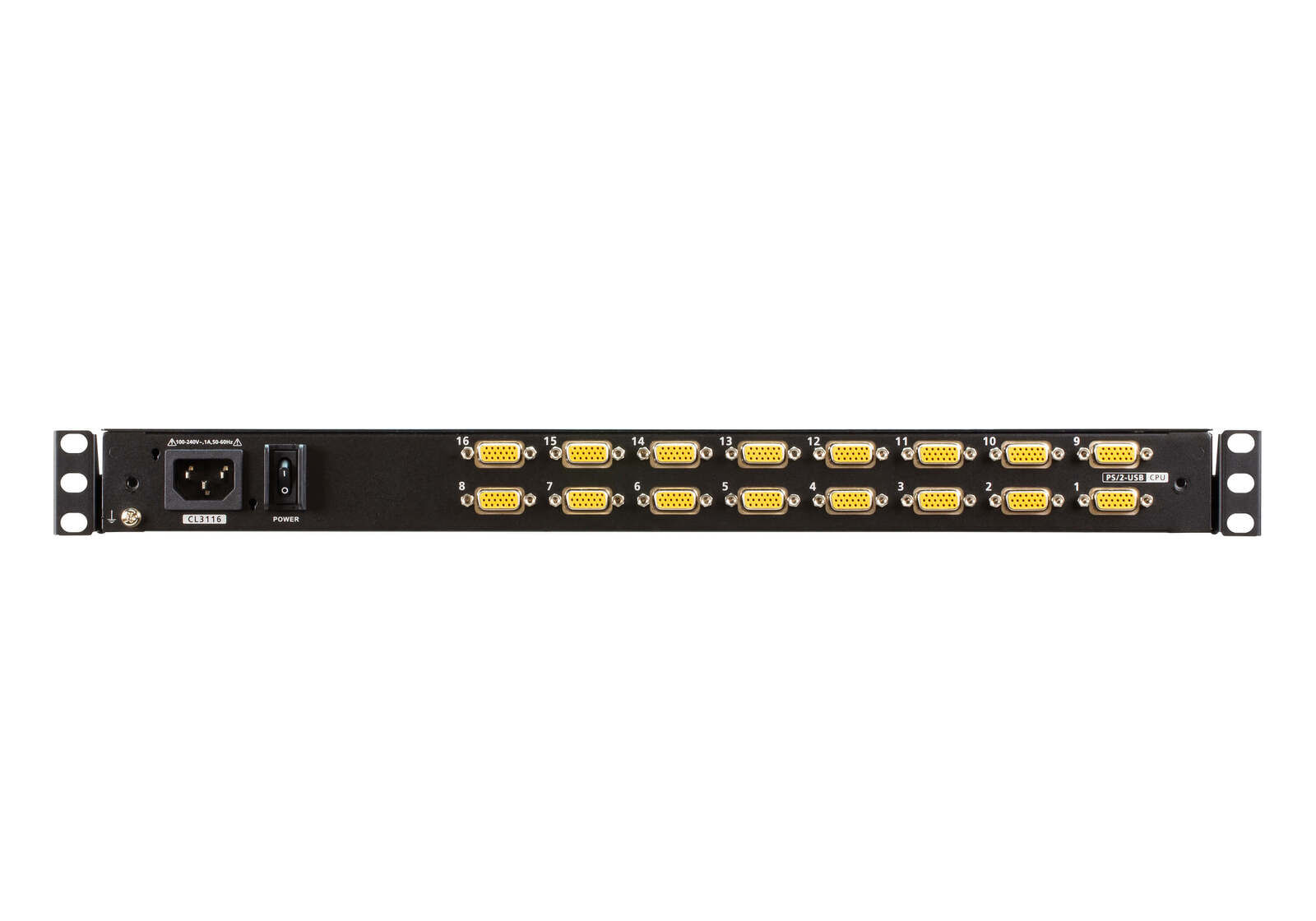

Aten Rackmount KVM Switch 16 Port VGA w/ 18.5' LCD Display, 2x Custom KVM Cables Included, 1366x768@60hz Display, Short Depth Design

SKU: Leader-KVA-CL3116NX

Aten Rackmount KVM Switch 16 Port VGA w/ 18.5' LCD Display, 2x Custom KVM Cables Included, 1366x768@60hz Display, Short Depth Design

SKU: Leader-KVA-CL3116NX

$2,770.98
RRP $2,836.25
SAVE $65.27
  • Sold Out
Quantity
-
+

Calculate shipping



Tracking Parcel Post - $9.95
5-7 Business days

Aten 18.5' Short Depth 16 Port LCD KVM, can be mounted up to a depth of 42cm to 72cm and LCD panel with 1366 x 768 resolution, includes 2 1.8m VGA USB KVM Cable

  • Exclusive LED illumination light designed to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
  • Cascade up to 2 levels – CL3116 controls up to 256 computers from a single console
  • Keyboard and mouse emulation (PS/2 and USB)


Specifications

  • Function CL3116NX
  • Computer Connections
  • Direct 16

Connectors

  • KVM Ports 16 x SPHD Female (Yellow)

Switches

  • Port Selection 16 x Pushbutton

Video

  • Input Video Resolution up to 1920 × 1200 @ 60 Hz;
  • 1366 × 768 @ 60 Hz, DDC2B
  • Scan Interval 1-255 seconds

Emulation

  • Keyboard / Mouse PS/2, USB
  • Maximum Input Power Rating 100–240 V AC, 50-60 Hz, 1 A
  • Power Consumption AC110V:14.1W:70BTU
  • AC220V:14.9W:74BTU

Environment

  • Operating Temperature 0-40°C
  • Storage Temperature -20-60°C
  • Humidity 0 - 80% RH, Non-condensing

Physical Properties

  • Housing Metal + Plastic
  • Rail Type Single Rail
  • Weight 10.60 kg ( 23.35 lb )
  • Dimensions (L x W x H) 48.06 x 63.17 x 4.28 cm
  • Body Dimensions(L x W x H) 44.92 x 58.4 x 4.28 cm
