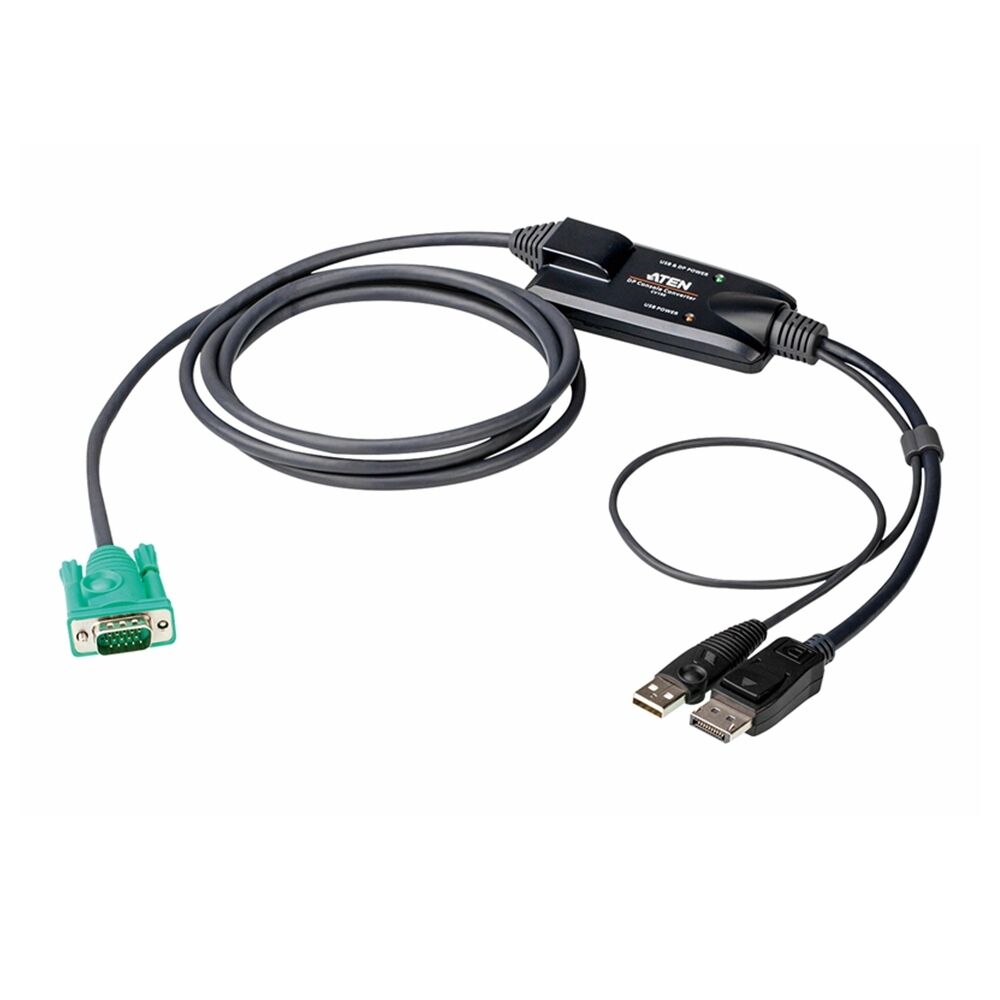

Aten DisplayPort Console Converter, connects an Aten SPHD (VGA KVM) interface switch to a DisplayPort and USB PC, up to 1920 x 1080 @ 60 Hz, compliant

SKU: Leader-KVA-CV190

Aten DisplayPort Console Converter, connects an Aten SPHD (VGA KVM) interface switch to a DisplayPort and USB PC, up to 1920 x 1080 @ 60 Hz, compliant

SKU: Leader-KVA-CV190

$69.73
RRP $76.13
SAVE $6.40
  • Sold Out
Quantity
-
+

Calculate shipping



Tracking Parcel Post - $9.95
5-7 Business days

Aten DisplayPort Console Converter, connects an Aten SPHD (VGA KVM) interface switch to a DisplayPort and USB PC, up to 1920 x 1080 @ 60 Hz, compliant with DP 1.1

Featurs:

  • Connects an ATEN SPHD-interfaced KVM switch to a DisplayPort and USB-enabled target computer
  • Supports high video resolution – up to 1920 x 1080 @ 60Hz
  • DisplayPort 1.1 compliant
  • Supports USB keyboard and mouse
  • Bus-powered – no external power adapter required
  • Easy installation – no software required

Specifications

  • Console Connections 1

Connectors

  • To Computer 1 x USB Type A Male
  • 1 x DisplayPort Male
  • To Switch 1 x SPHD-15 Male

Switches

  • Power Selected 1 x Slide Switch

LEDs

  • Status 1 (Green; USB & DP Power)
  • 1 (Orange; USB Power)

Others

  • Video 1920 x 1080 @ 60 Hz
  • Power Consumption DC5V:1.01W:5BTU
  • Operating Temperature 0-50°C
  • Storage Temperature -20-60°C
  • Humidity 0-80% RH, Non-condensing

Physical Properties

  • Housing Plastic
  • Weight 0.21 kg ( 0.46 lb )
  • Cable Length 1.8 m
  • Dimensions (L x W x H) 9.00 x 4.30 x 2.18 cm (3.54 x 1.69 x 0.86 in.)

Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Package Contents

  • 1x CV190 DisplayPort console converter cable
