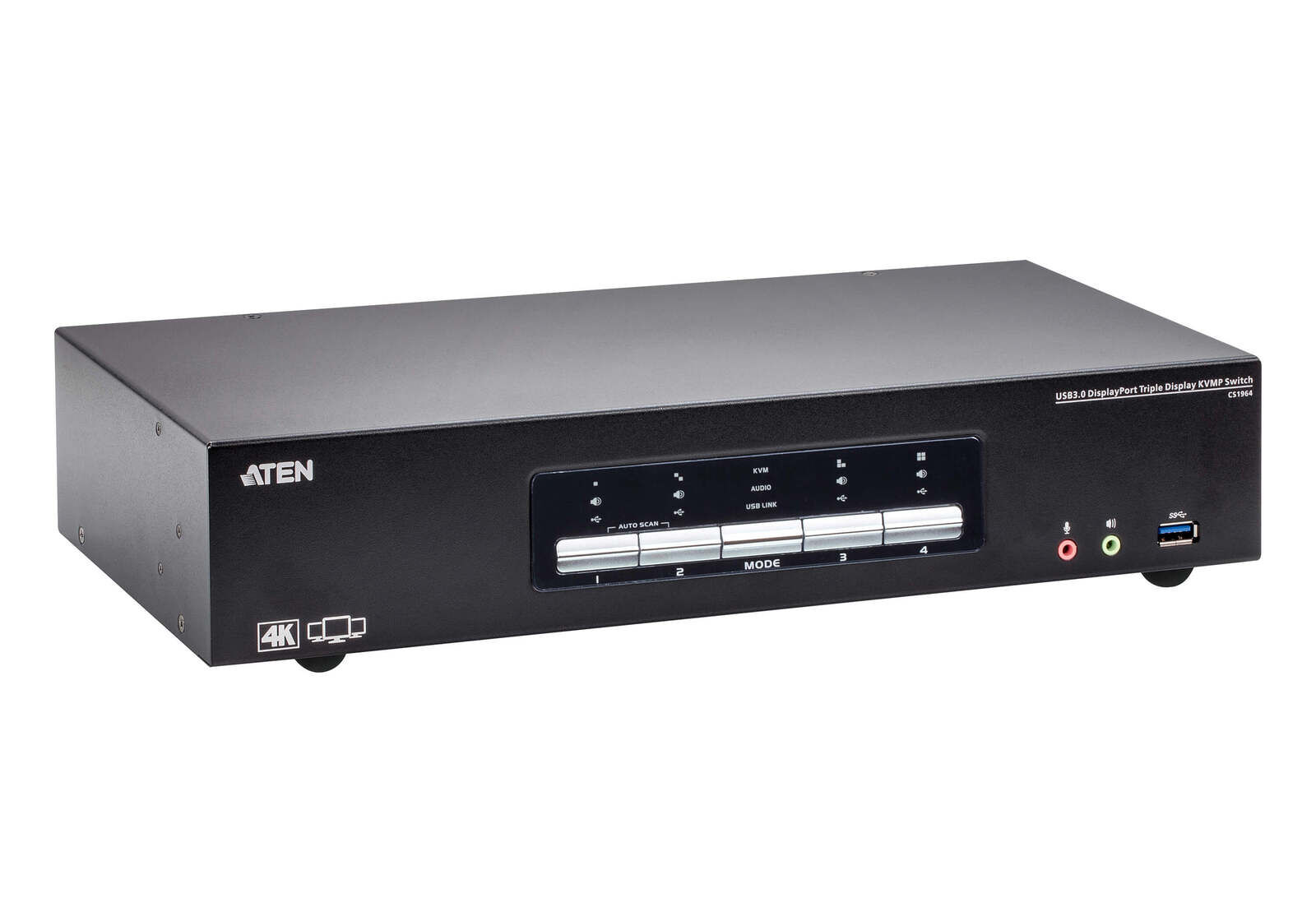

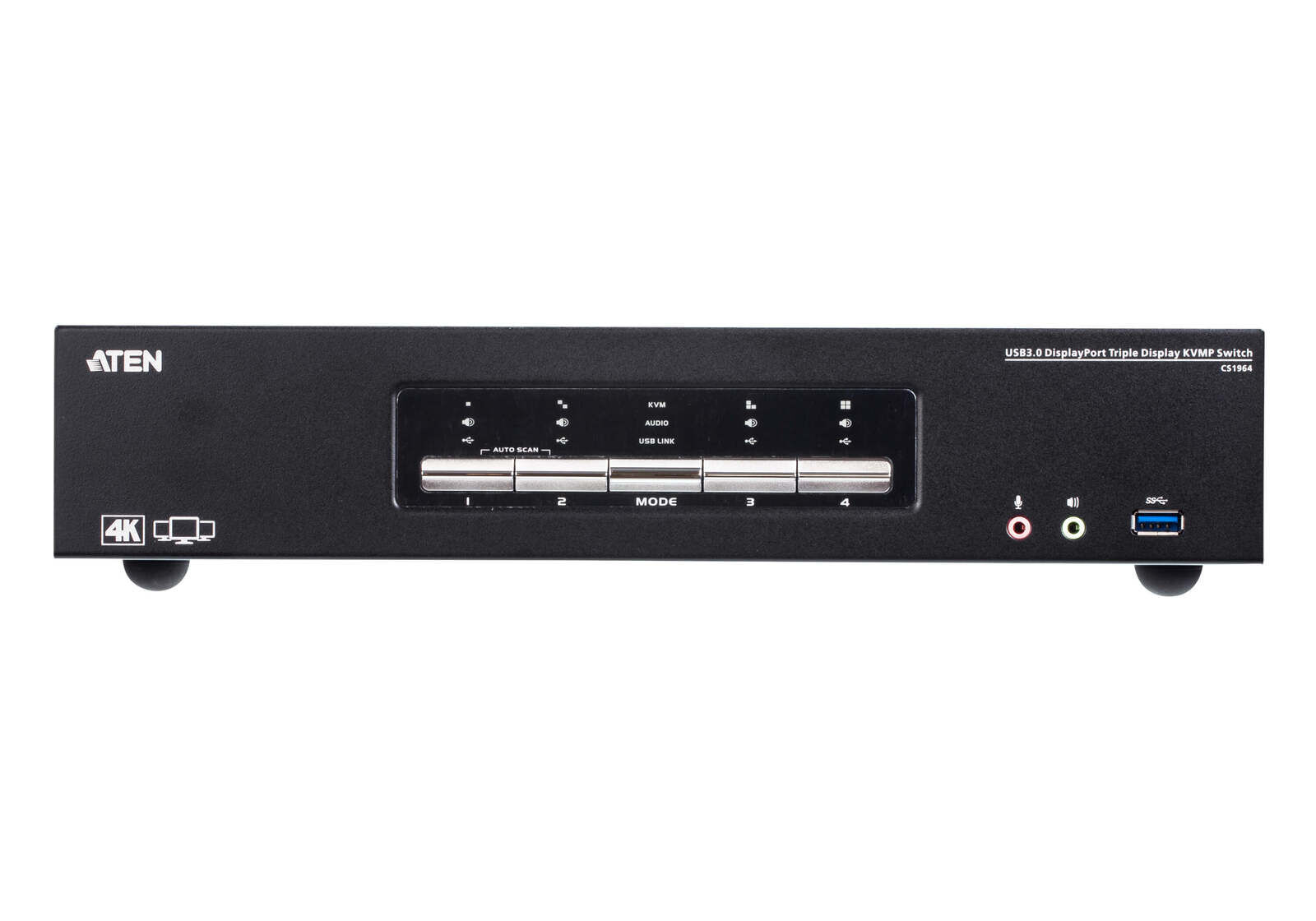

Aten 4 Port USB 3.0 4K Triple DisplayPort KVMP Switch, supports up to 4096 x 2160 @ 60 Hz, supports MST on DP 1.2 compliant inputs, suppports Video DynaSync, 6 displays by connecting two CS1964 units, includes only two KVM Cable kits

• Superior video quality – 4096 x 2160 @ 60Hz and 3840 x 2160 @ 60Hz; 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
• Hex-Display – connect a second CS1964 unit for two triple-display setup controlled by one operator
• Supports Video DynaSync
• Computer selection via pushbuttons, hotkeys, mouse, and RS-232 Commands

SPECIFICATIONS

• Computer Connections 4
• Port Selection Hotkey, Pushbutton, Mouse, RS-232 Commands

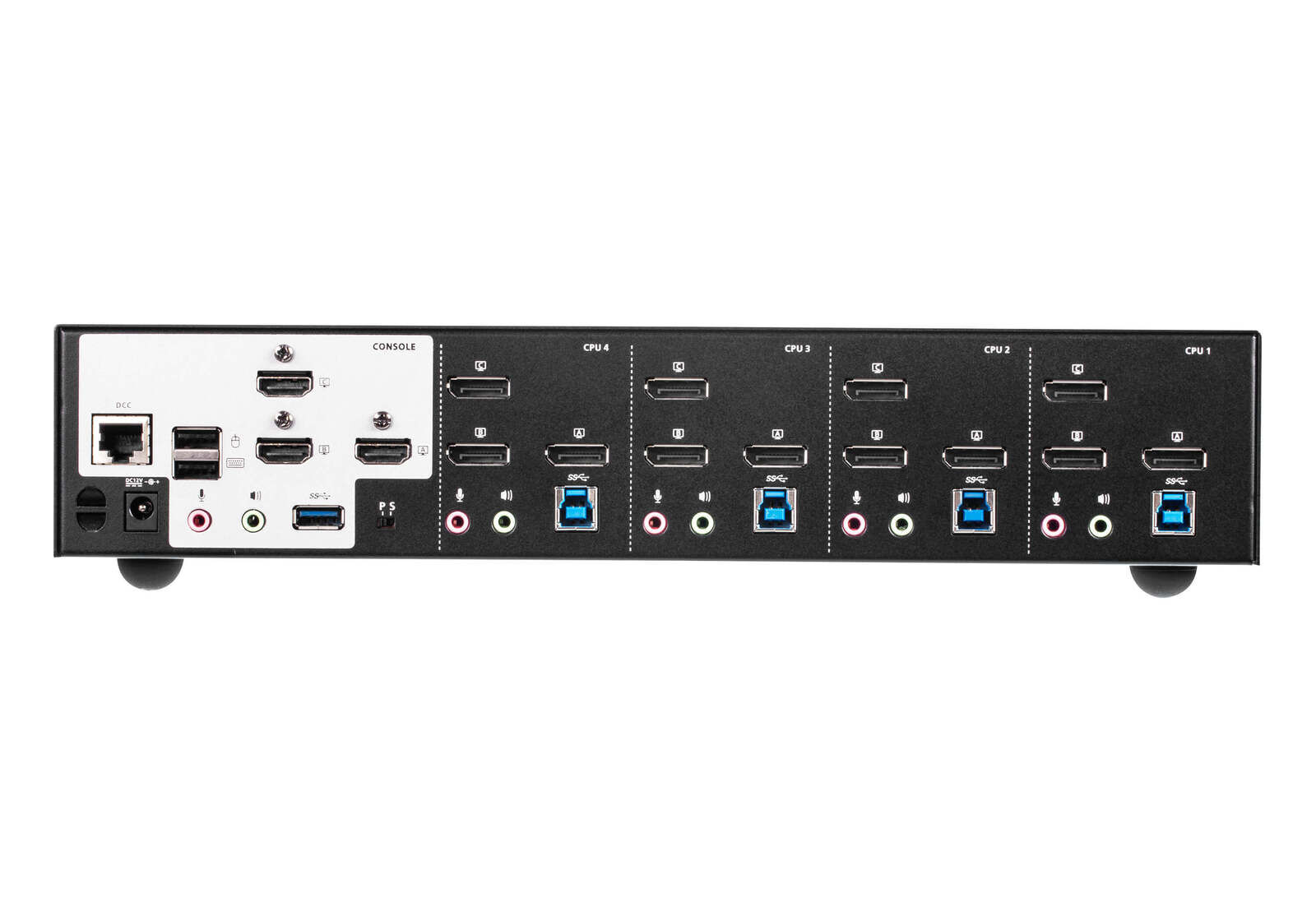

Connectors

• Console Ports 2 x USB Type A Female
• 3 x HDMI Female (Black)
• 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
• 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
• KVM (Computer) Ports 4 x USB3.1 Gen1 Type B Female (Blue)
• 12 x DisplayPort Female (Black)
• 4 x 3.5mm Audio Jack Female (Green)
• 4 x 3.5mm Audio Jack Female (Pink)
• Daisy Chain Ports 1 x RJ-45 Female
• Power 1 x DC Jack
• USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)

Switches

• Selected 5 x Pushbutton
• Station Selection 1 x Slide Switch

LEDs

• USB Link 5 (Green)
• Audio 5 (Green)
• KVM 5 (Orange)

Emulation

• Keyboard / Mouse USB
• Video 4096 x 2160 @ 60Hz
• Scan Interval 1-99 seconds (default: 5 seconds)
• Power Consumption DC12V:15.49W:115BTU

Environment

• Operating Temperature 0–50°C
• Storage Temperature -20–60°C
• Humidity 0-80% RH, Non-condensing

Physical Properties

• Housing Metal
• Weight 1.93 kg ( 4.25 lb )
• Dimensions (L x W x H)33.50 x 15.60 x 6.55 cm
