Aten 4 Port HDMI Input Board for VM1600A/VM3200 (PROJECT)

SKU: Leader-KVA-VM7804

Aten 4 Port HDMI Input Board for VM1600A/VM3200 (PROJECT)

SKU: Leader-KVA-VM7804

$1,793.80
RRP $2,148.75
SAVE $354.95
  • Sold Out
Quantity
-
+

Calculate shipping



Tracking Parcel Post - $9.95
5-7 Business days

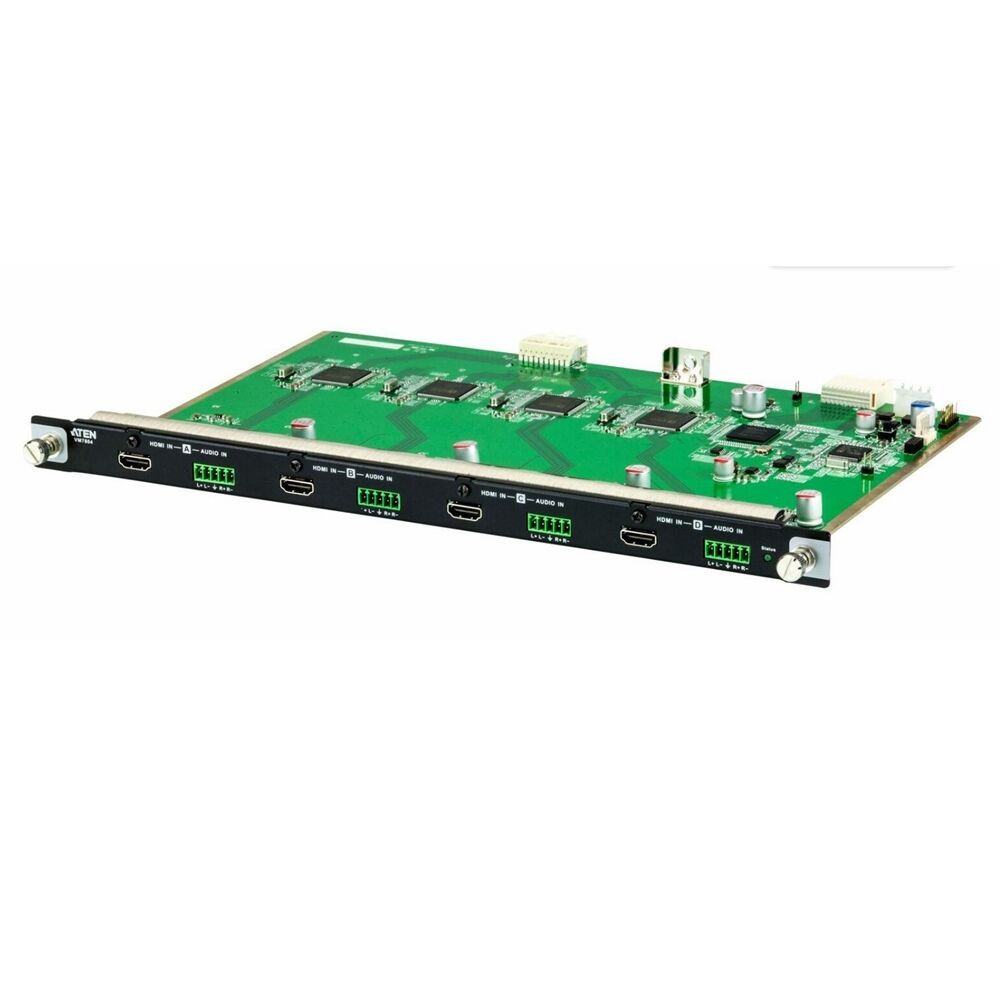

Aten 4 Port HDMI Input Board for VM1600A/VM3200

  • HDMI (3D, Deep Color); HDCP 1.4 Compatible
  • EDID Expert – selects optimum EDID settings for smooth power-up and the highest quality display
  • Audio-enabled, HDMI audio can be extracted and stereo audio can be embedded
  • Hot-swappable design for easy integration of I/O boards.



Video Input

  • Interfaces 4 x HDMI Type A Female (Black)
  • Impedance 100 Ώ
  • Max. Distance Up to 5m

Video

  • Max. Data Rate 6.75 Gpbs (2.25 Gbps Per Lane)
  • Max. Pixel Clock 225 MHz
  • Compliance HDMI (3D, Deep Color)
  • HDCP 1.4 Compatible
  • Consumer Electronics Control (CEC)
  • Max. Resolution Up to 1920 x 1080

Audio
Input 4 x Captive Screw Connector, 5 Pole

  • *Audio signal type: stereo, balanced/unbalanced.
  • Power Consumption 7W:33BTU

Environment

  • Operating Temperature 0 - 40°C
  • Storage Temperature -20 - 60°C
  • Humidity 0 - 80% RH, Non-Condensing

Physical Properties

  • Housing Metal
  • Weight 0.58 kg ( 1.28 lb )
  • Dimensions (L x W x H) 35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in.)
  • Carton Lot 2 pcs

Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Package Contents

  • 1x VM7804 4-Port HDMI Input Board
  • 4x Terminal Blocks
  • 1x User Instructions
