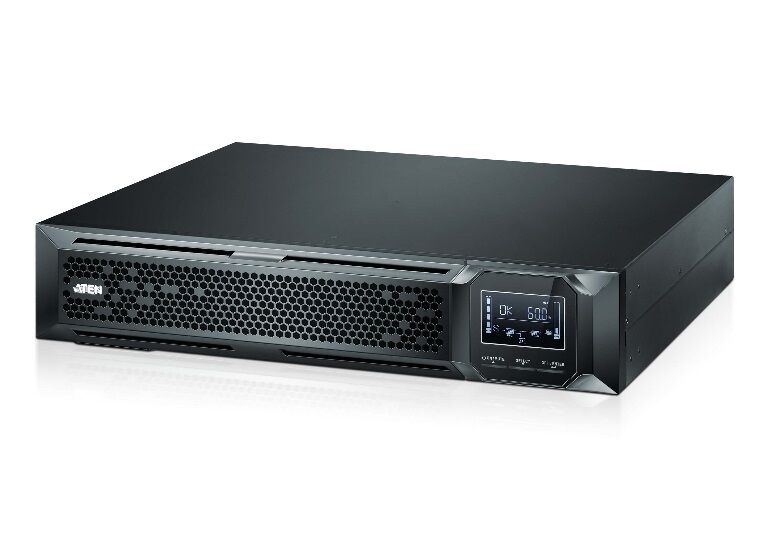

Aten 1000VA/1000W Professional Online UPS with USB/DB9 connection, 8 IEC C13 outlets, EPO and RJ port surge protection (Inc 2yrs back to base wty)

SKU: Leader-UPA-OL1000HV

Aten 1000VA/1000W Professional Online UPS with USB/DB9 connection, 8 IEC C13 outlets, EPO and RJ port surge protection (Inc 2yrs back to base wty)

SKU: Leader-UPA-OL1000HV

Quantity
-
+

Calculate shipping



Tracking Parcel Post - $9.95
5-7 Business days

Aten 1000VA/1000W Professional Online UPS with USB/DB9 connection, 8 IEC C13 outlets, optional SNMP support, EPO and RJ port surge protection

General
UPS Topology Double-Conversion
Energy Saving(max) >96%(ECO)
>89%(AC)
>88%(Batt)
HID Compliant USB Port Yes
Serial Port Yes
SNMP / HTTP Remote Monitoring Yes - Optional SNMP CARD

Input
Voltage 220/230/240 VAC
Input Voltage Range 160-300 VAC ?? 5% @ 100% load
110-300 VAC ?? 5% @ 50% load
Derate capacity to 80% when the output voltage is adjusted to 200VAC/208VAC.
Input Frequency Range 40 Hz ~ 70 Hz
Rated Input current 4.8A
Input Power Factor ??? 0.99 @ nominal voltage (100% load)
Cold Start Yes
Plug Type IEC 320 C14
Power cord 6ft (Schuko Plug / )

Output
VA 1000 Watts 1000
On Battery Waveform Sine Wave
On Battery Frequency 50/60Hz +/- 3 Hz
Outlets - Total 8
Outlet Type (8) IEC 320 C13
Outlets - Battery & Surge Protected 8
Rated Power Factor 1
Crest Factor 3:1
Harmonic Distortion ???2 % THDi (Linear Load)
??? 4 % THDi (Non-linear Load)
Voltage Regulation ?? 1%(Batt)
Transfer Time(AC to Batt.) 0ms
Transfer Time(Inverter to Bypass) 4ms(ECO)

Battery
Runtime at Half Load (min) 10.1
Runtime at Full Load (min) 2.95
Battery Type Sealed Lead-Acid
Battery Pack Voltage 24V
Battery Size 12V/9AH
Battery Quantity 2
Hot-Swappable Yes
Typical Recharge Time 3 hours recover to 95% capacity@2A
charging current.
Max charger current 12A
Extended Battery Module BP24V18AH
Replacement Battery Pack BC24V9AH
Replacement Battery Pack Quantity 1

Physical Properties
Rack Unit 2U
Type Rack/Tower
Dimensions (L x W x H) 8.80 x 43.80 x 41.00 cm
(3.46 x 17.24 x 16.14 in.)
Weight 12.70 kg ( 27.97 lb )

Environmental
Temperature (Operating / Storage) 0?€?40??C (non-condensing) / -20 ?€? 50??C
Humidity (Operating & Storage) 20?€?90 % RH / 10% ?€? 95%(No condensing)
Audible noise at 1M from surface of unit Less than 50dB
